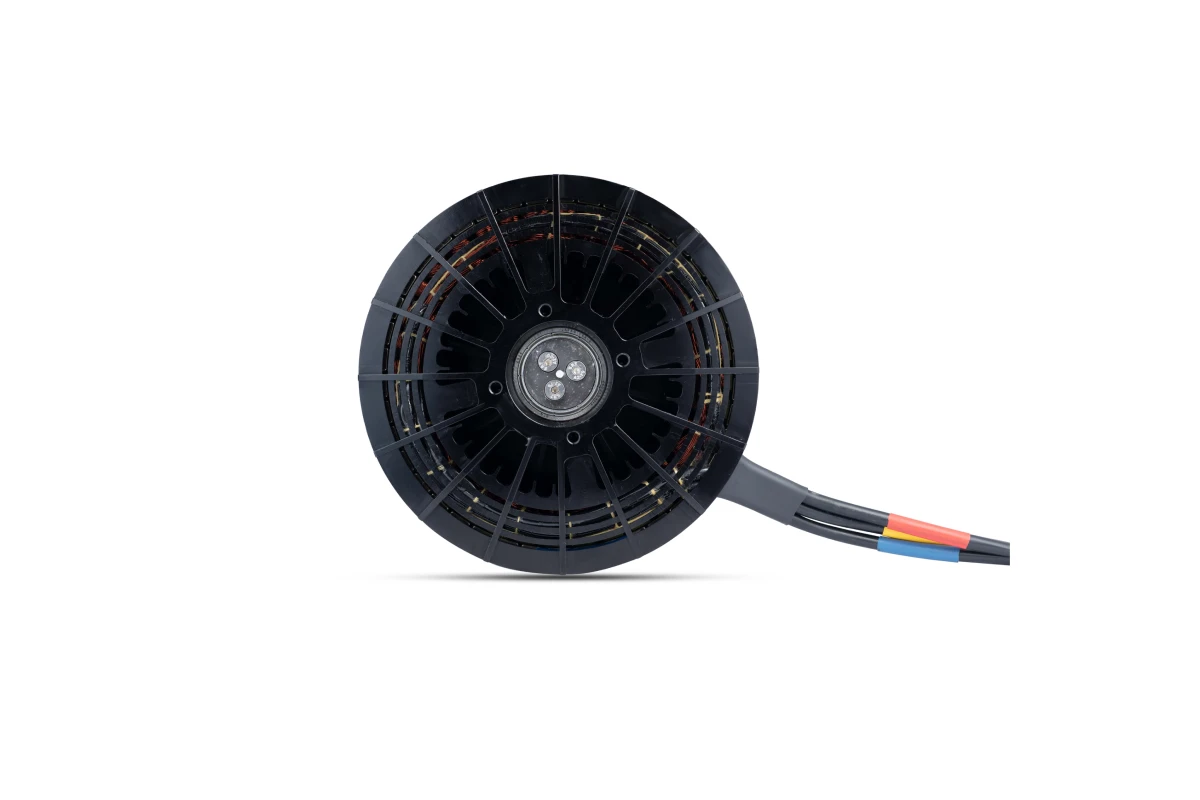

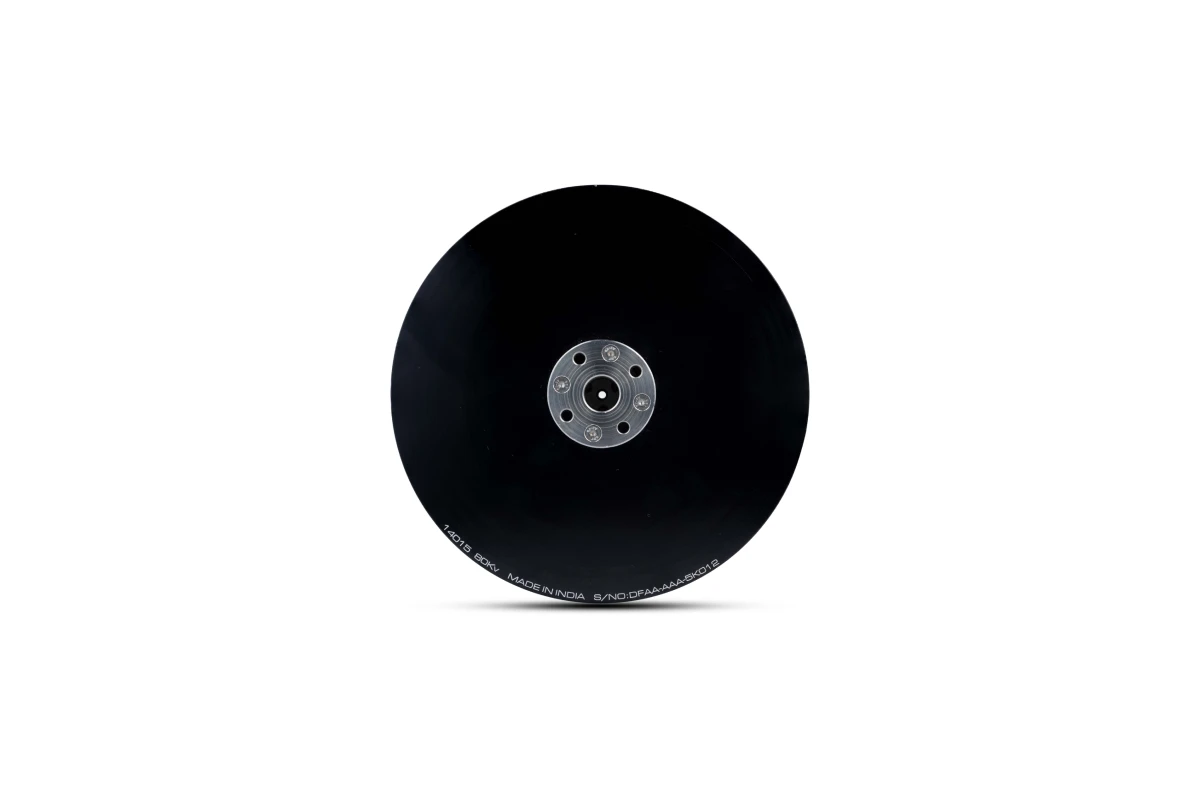

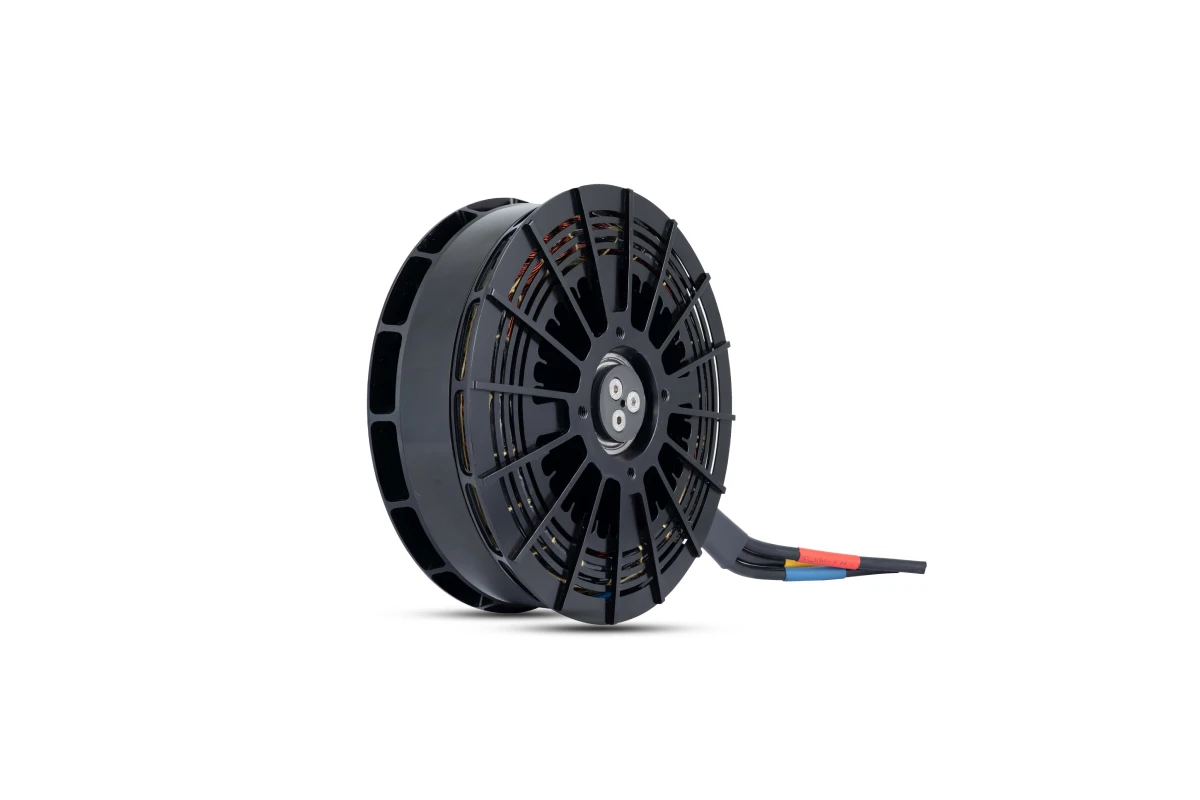

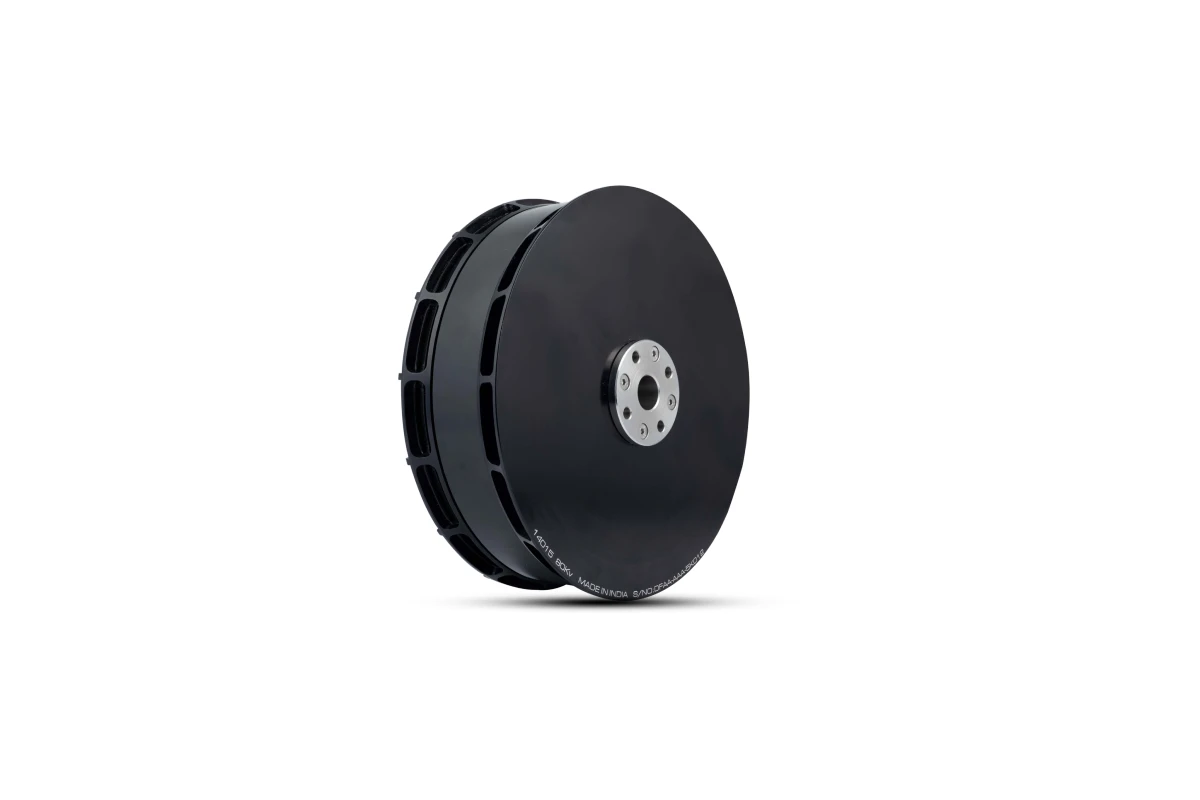

14015 PRO
Motor Diameter
ø 156 mm
Motor Length
49 mm
Motor Weight
1650 g ± 2%
Kv (Motor Velocity Constant) :
80 RPM/V
Kt (Motor Torque Constant) :
0.185 Nm/A @ 1913 rpm
Maximum Continuous Current :
81 A (180 s)
Maximum Continuous Power :
3933 W (180 s)
Power Density :
2.25 W/g (Rated), 3.07 W/g (Maximum)
Voltage Range :
48 V to 72 V ( 12 S to 24S LiHv)
Io (XX@V) :
7.0 A (@48V)
Inductance per phase (Winding Inductance) :
0.030 ( ≃0.03) mH
Stator Poles :
36S
Magnetic Poles :
42P
Bearings :
Dual 61904 - 2RZ Sealed
Stick Out Shaft Diameter :
ø 40 mm
Motor Diameter :
ø 156 mm
Motor Length :
49 mm
Motor Weight :
1650 g ± 2%
Mount Pattern @ 90 deg :
4 X M5 @ PCD ø 50 mm ↧ 12 mm
Compatible Propeller Size :
Upto 48 " inch
Propeller Mount Pattern :
4 X M4 @ PCD ø 30 mm ↧ 18 mm
Specifications And Performace Data
