3510 PRO 700 KV - Multi Rotor Motors

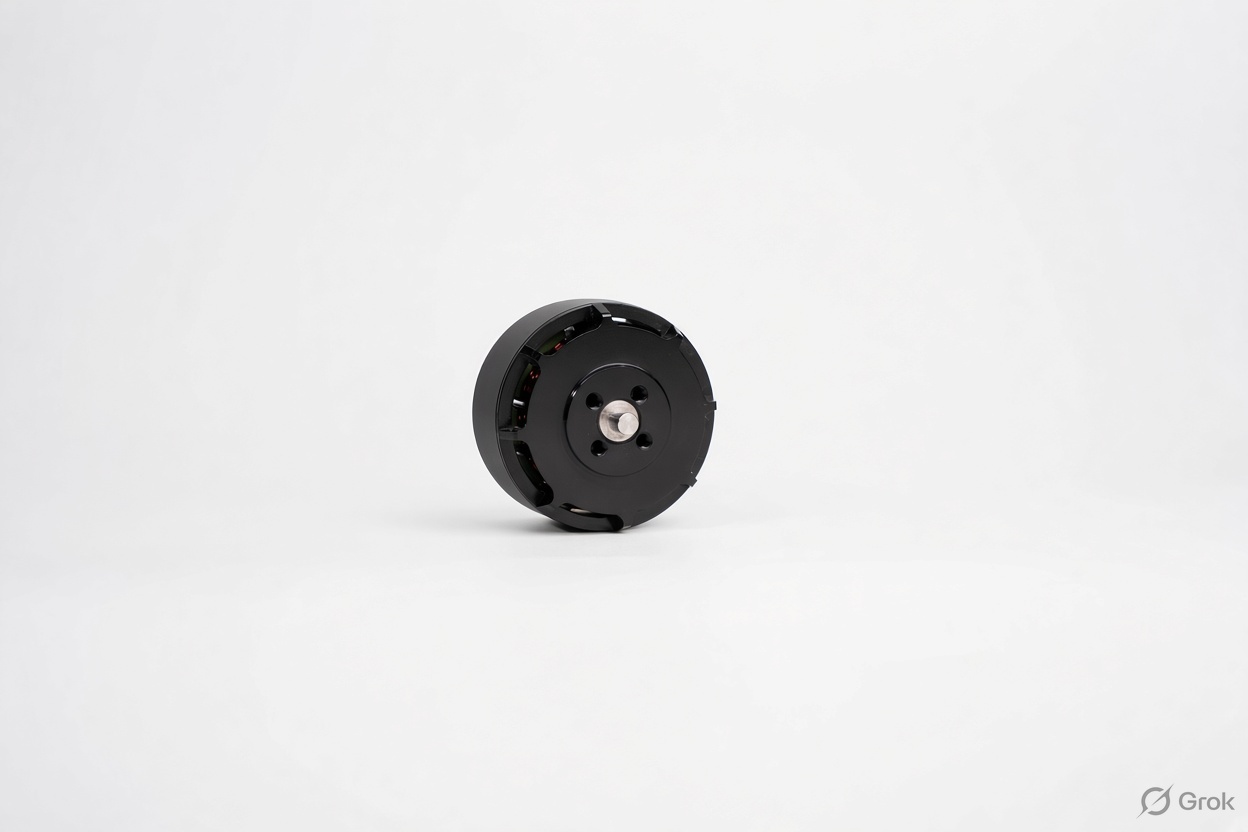

Vector Technics 3510 PRO 700 KV BLDC motor – view 1

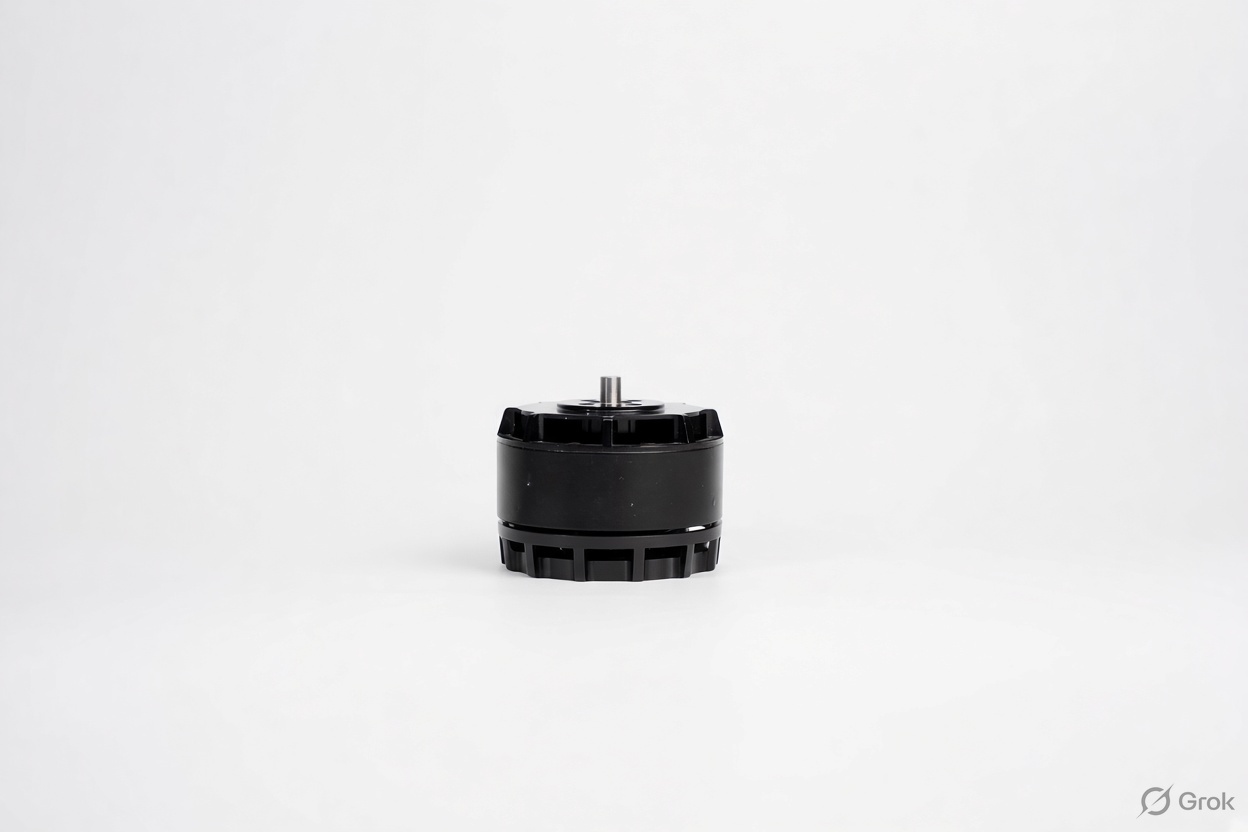

Vector Technics 3510 PRO 700 KV BLDC motor – view 2

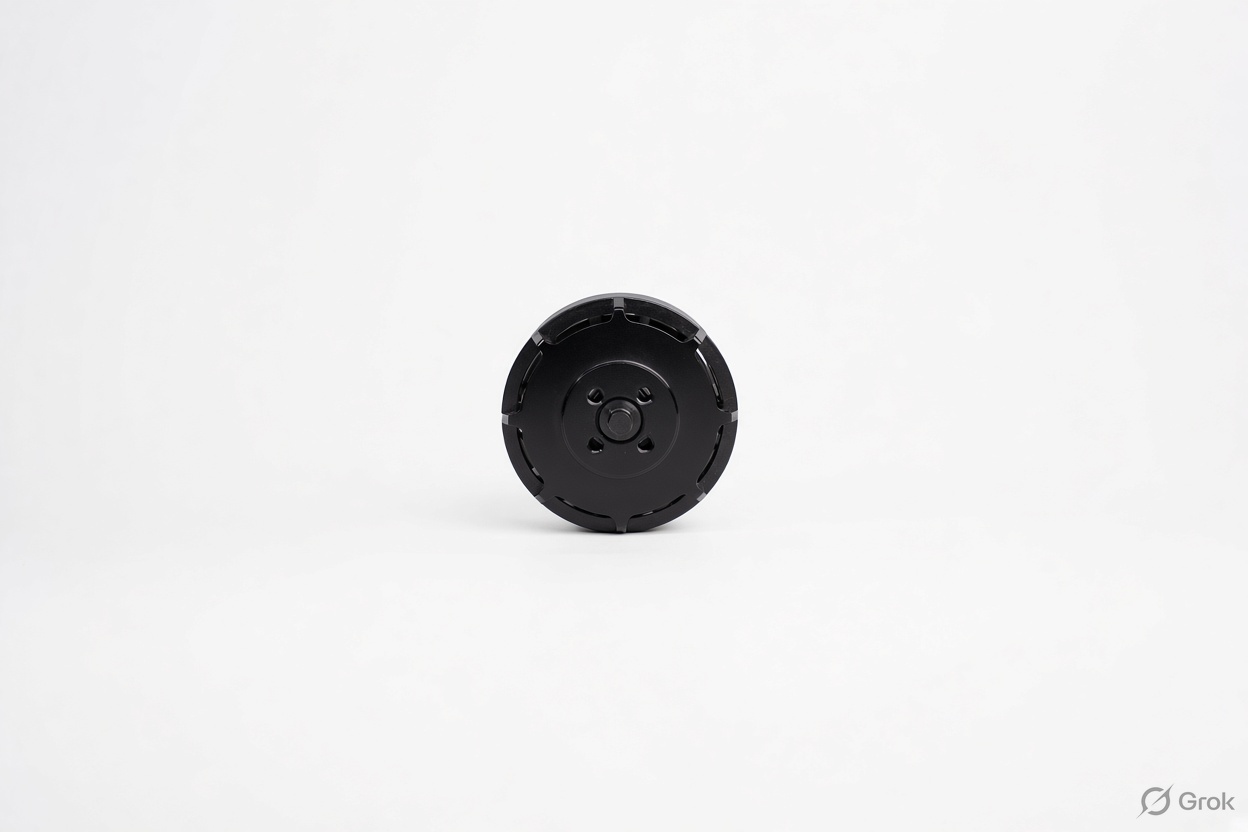

Vector Technics 3510 PRO 700 KV BLDC motor – view 3

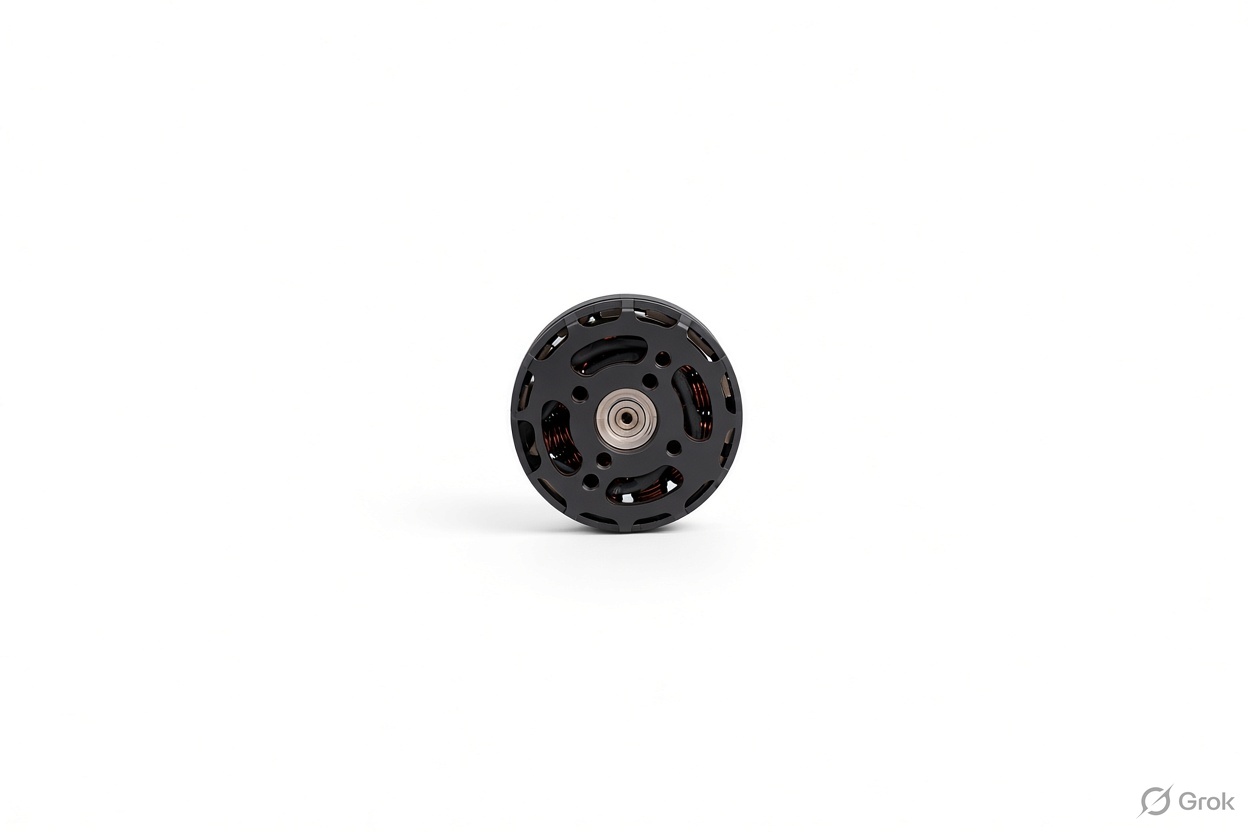

Vector Technics 3510 PRO 700 KV BLDC motor – view 4

No items found.

Multi Rotor Motors-Pro Series

3510 PRO

700 KV

Highlights

Motor Diameter

ø 41.80 mm

Motor Length

30 mm

Motor Weight

106.3 g ± 2

Specifications

Kv (Motor Velocity Constant) :

700 RPM/V

Kt (Motor Torque Constant) :

0.02432 Nm/A

Maximum Continuous Current :

9.92A (180s)

Maximum Continuous Power :

243.7 W (180s)

Power Density :

2.29 W/g (Rated), 5.8 W/g (Maximum)

Voltage Range :

22V - 25V ( 6S LiPo)

Io (XX@V) :

1.47A (@ 24V)

Inductance per phase (Winding Inductance) :

0.049 mH ± 5%

Stator Poles :

12S

Magnetic Poles :

14P

Bearings :

Dual 619_ 4-2z

Stick Out Shaft Diameter :

ø 20 mm

Motor Diameter :

ø 41.80 mm

Motor Length :

30 mm

Motor Weight :

106.3 g ± 2

Mount Pattern @ 90 deg :

6 X M3 @ PCD ø 19 mm ↧ 3.5 mm

Compatible Propeller Size :

12 " inch to 14 " inch

Propeller Mount Pattern :

4 X M3 @ PCD ø 12 mm ↧ 6 mm

Specifications And Performace Data

3510 PRO

700 KV

Download

Didn’t find what you were looking for?

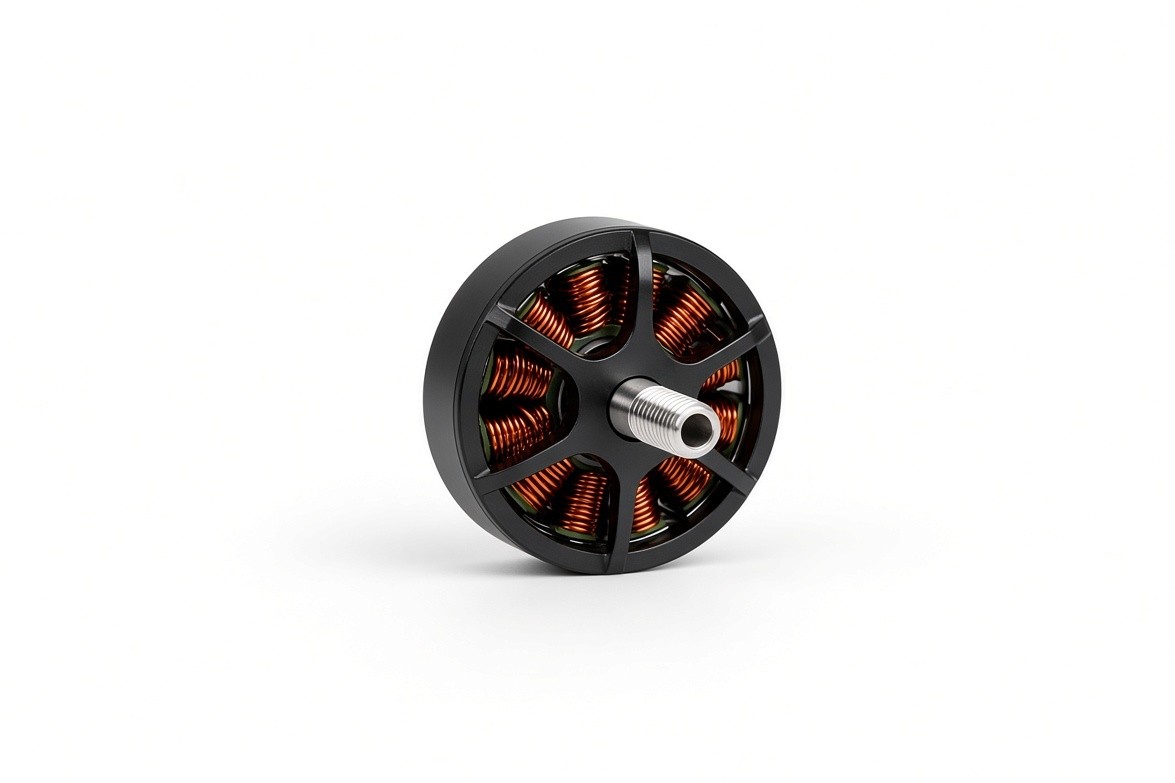

2306 SL

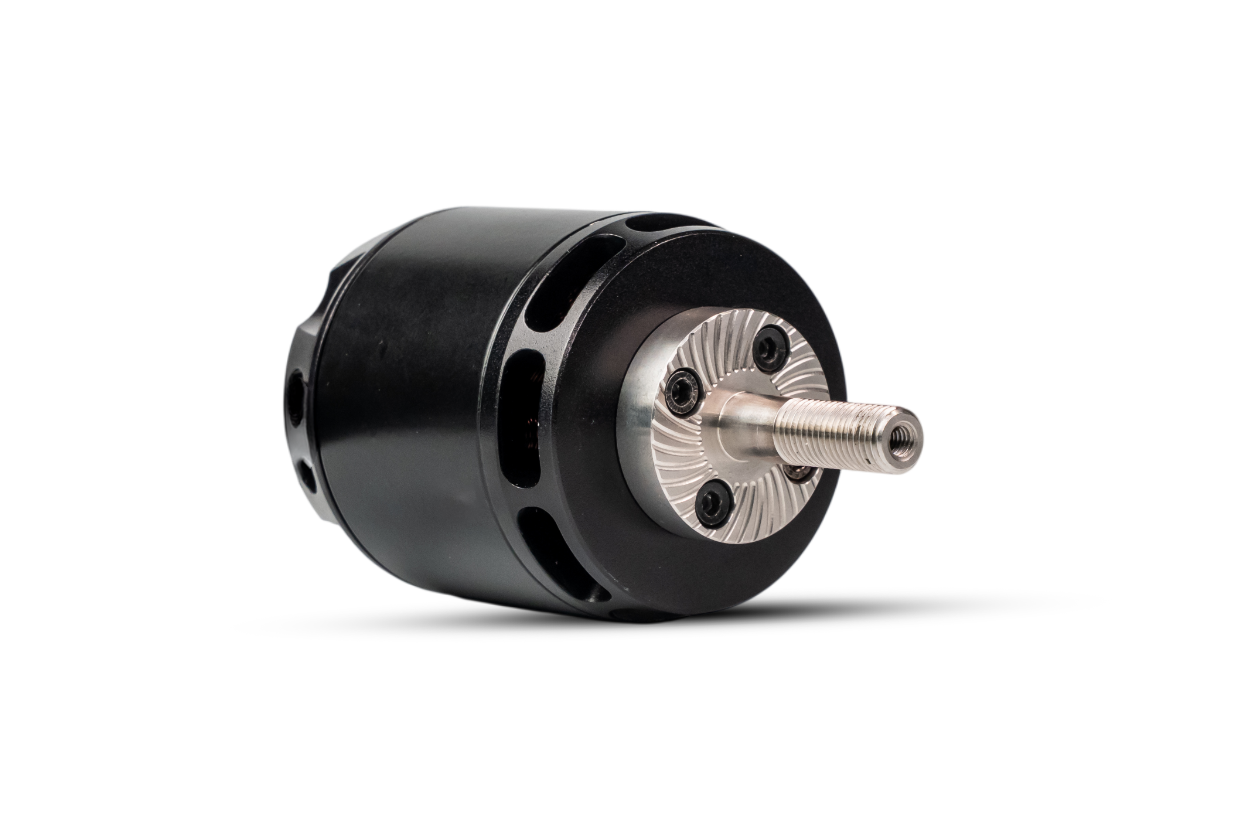

4130 FW

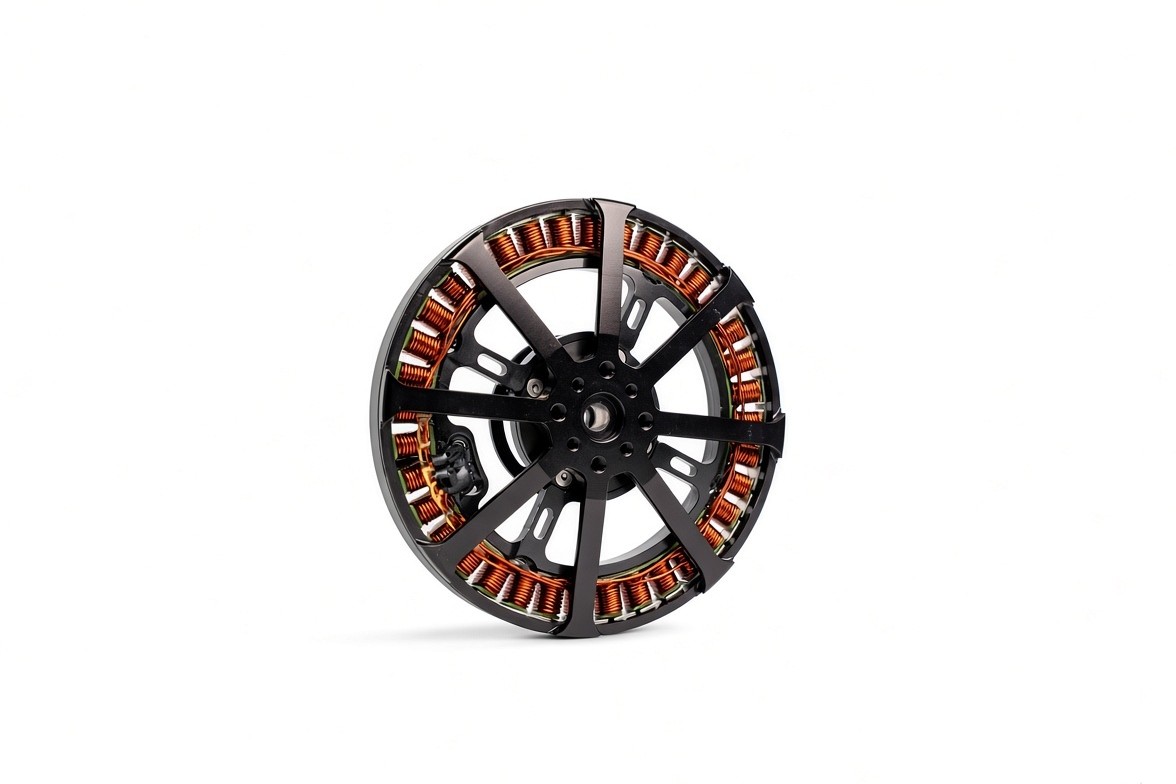

10005 SL

6040 FW

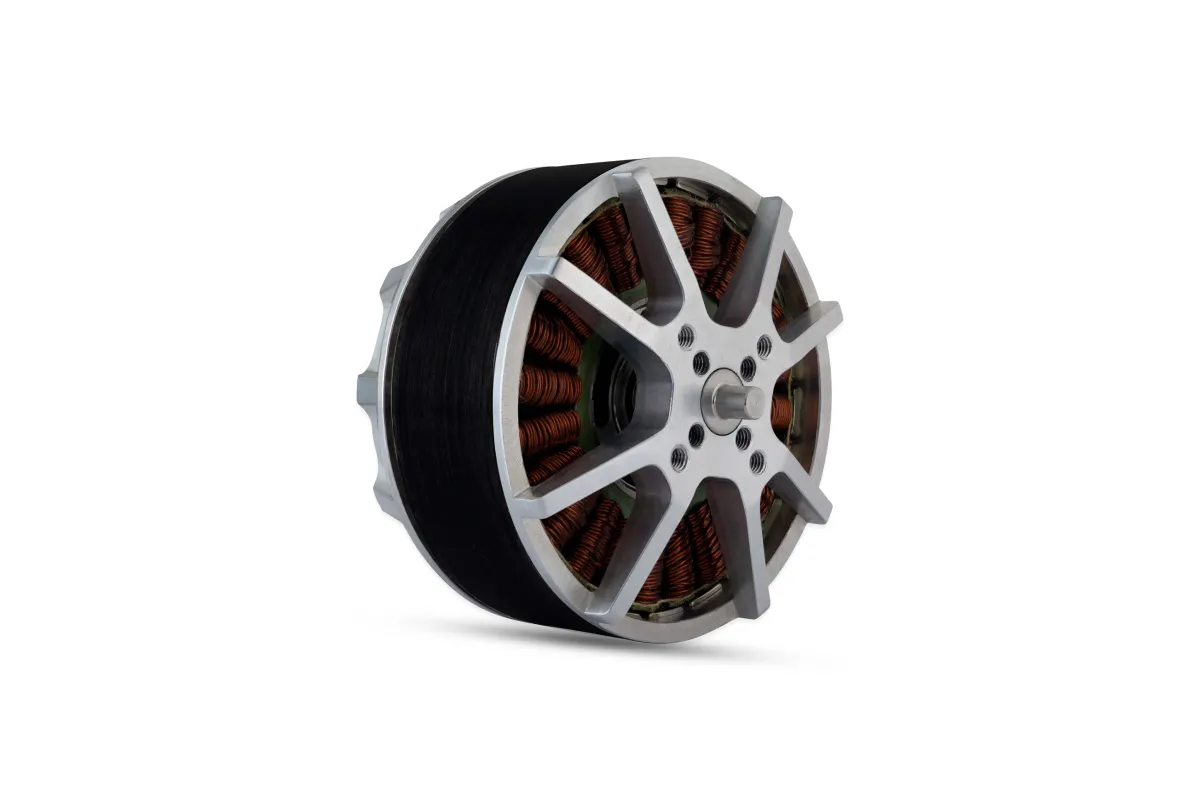

5215 FW

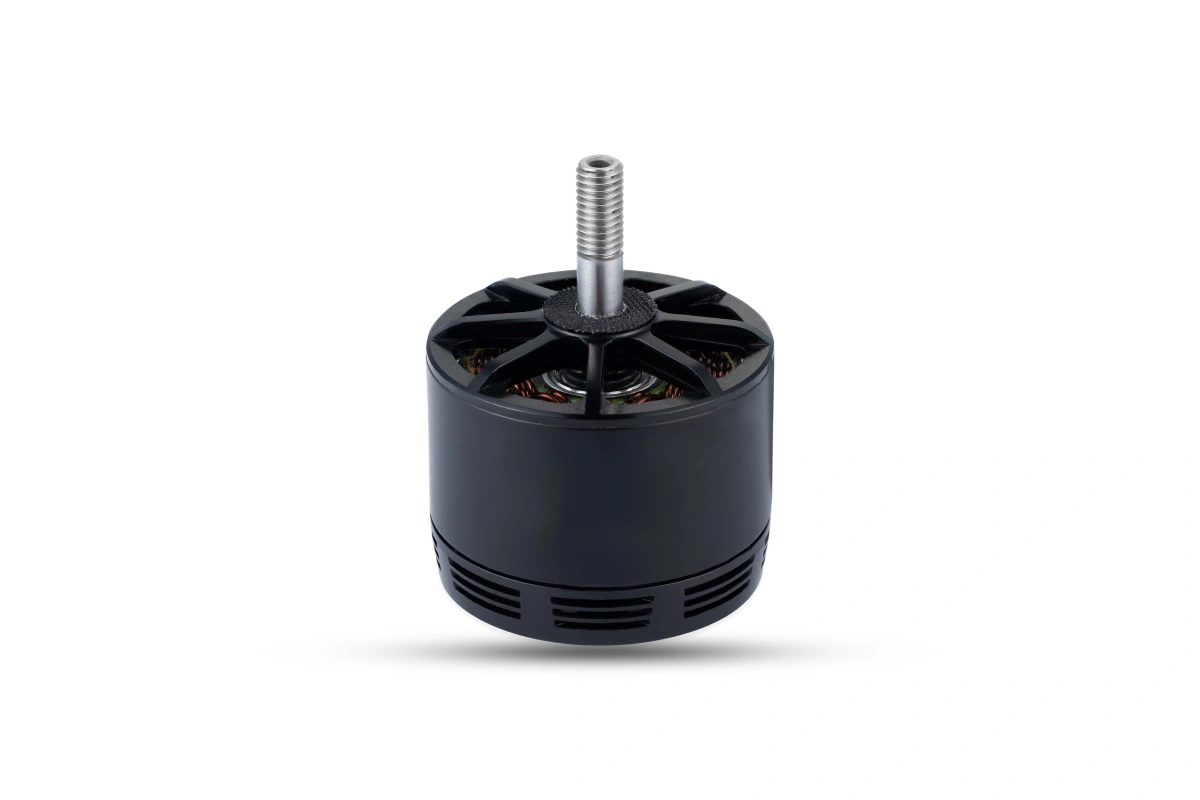

3115 SL

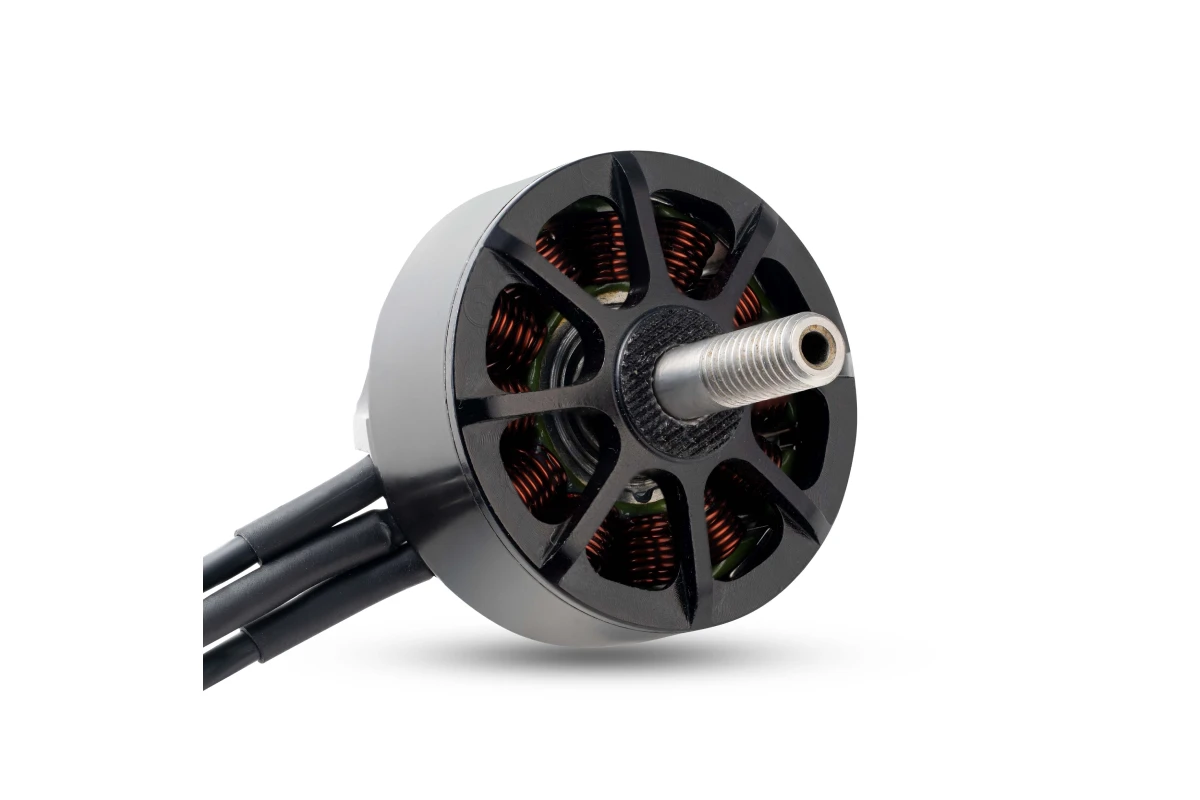

2806 SL

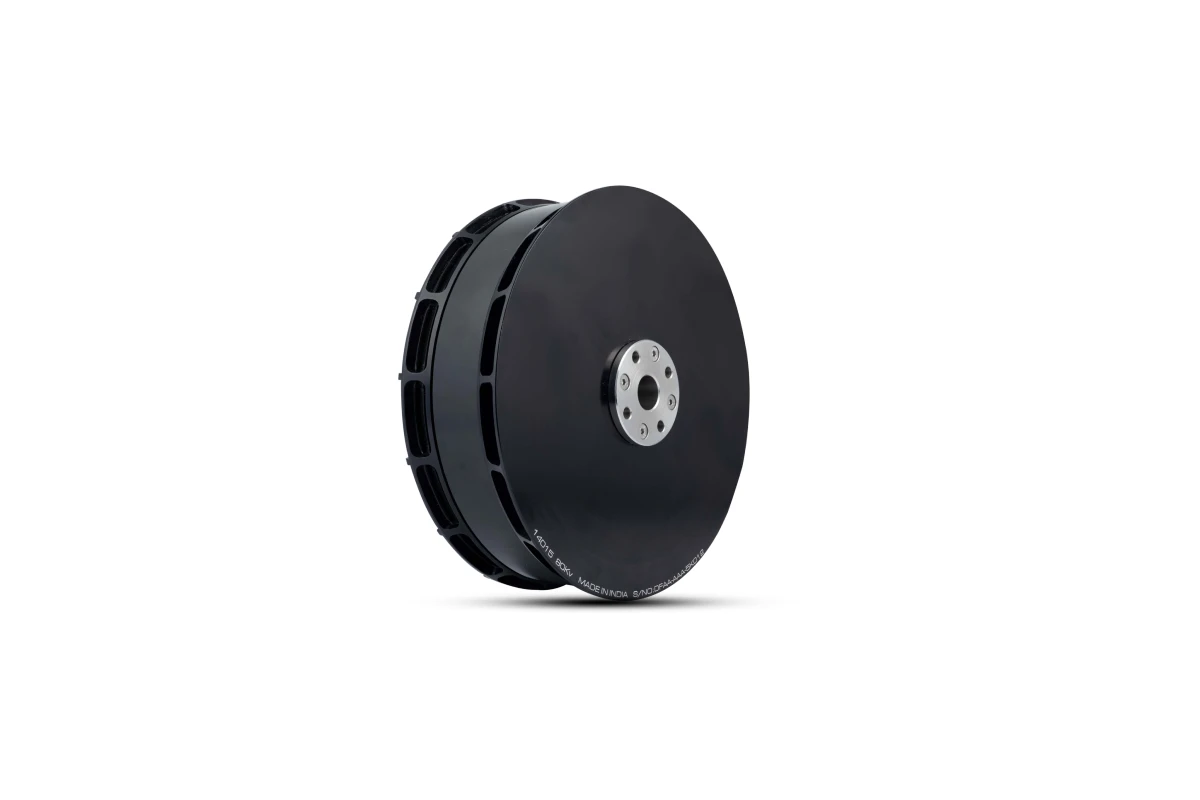

14015 PRO

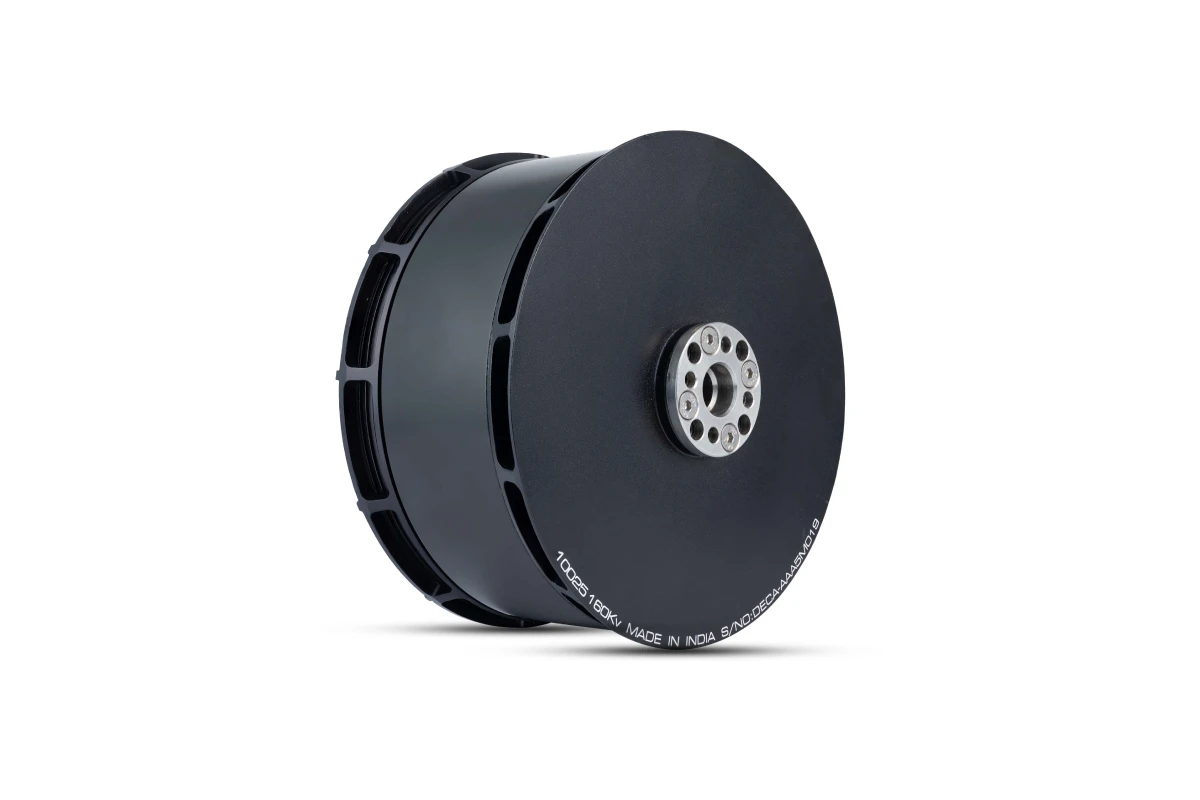

10025 PRO

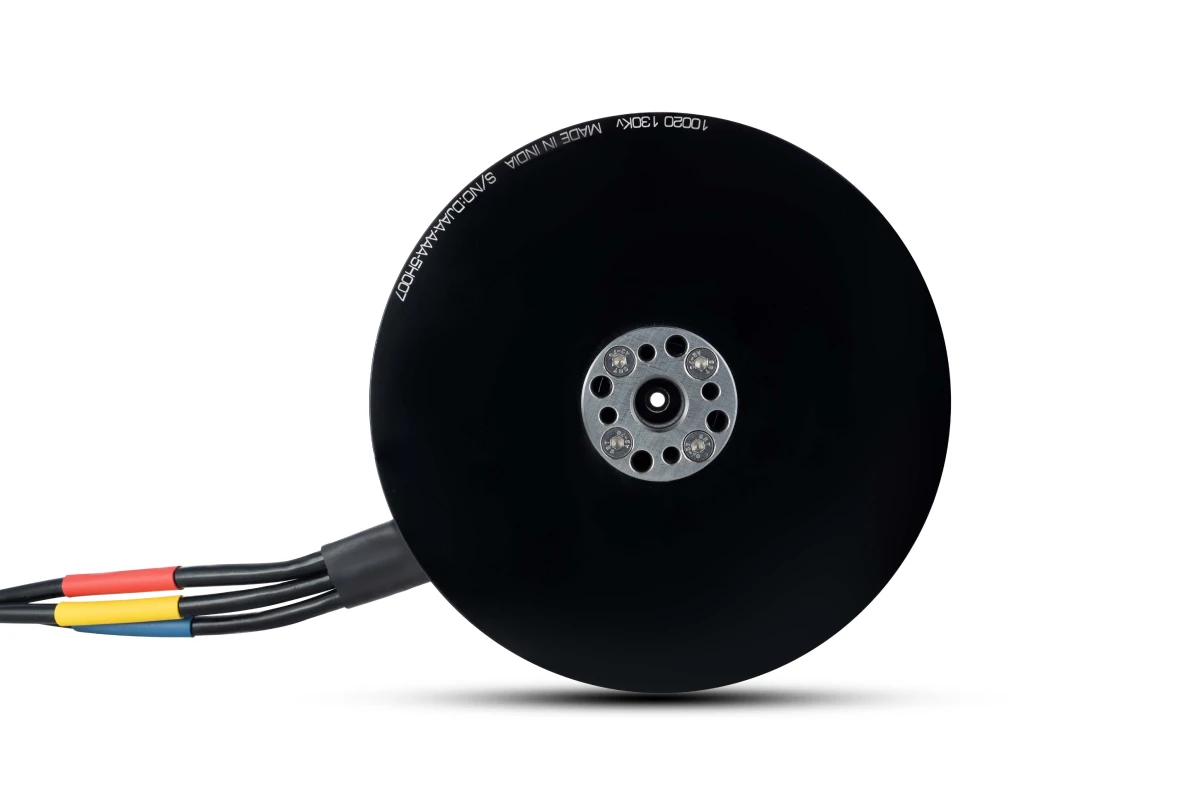

10020 PRO
