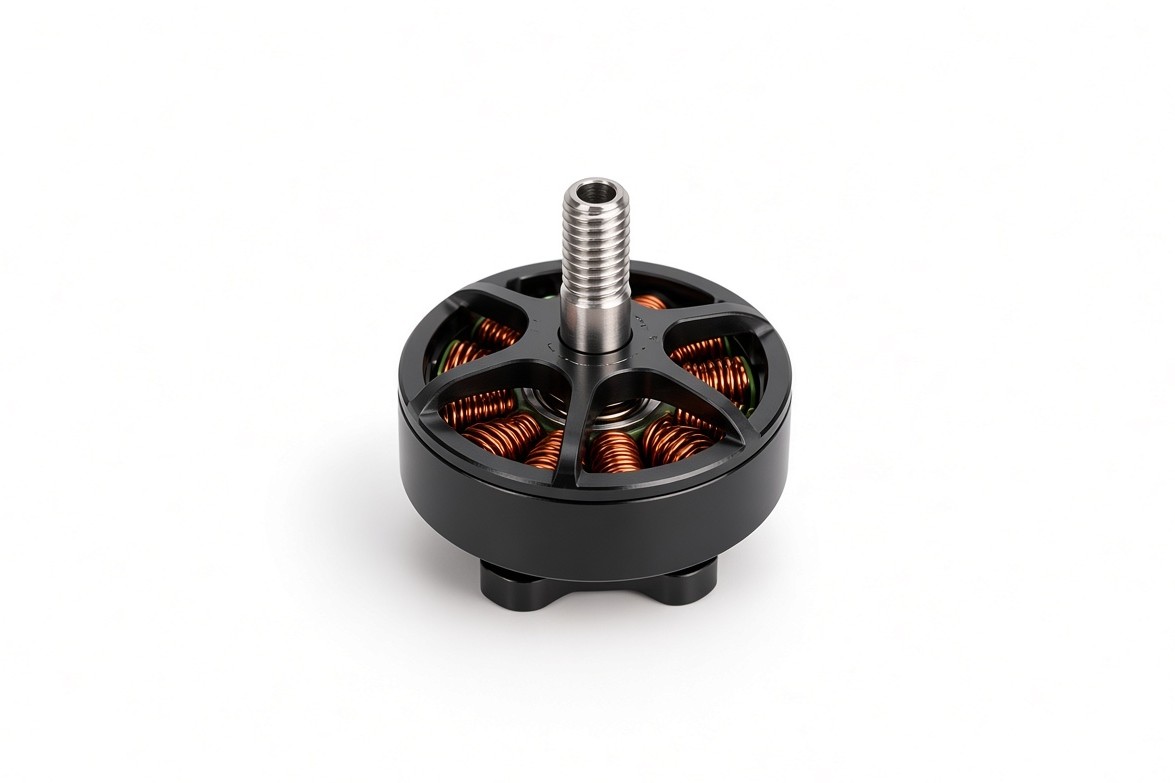

Vector Technics 2306 SL 1750 KV BLDC motor – view 2

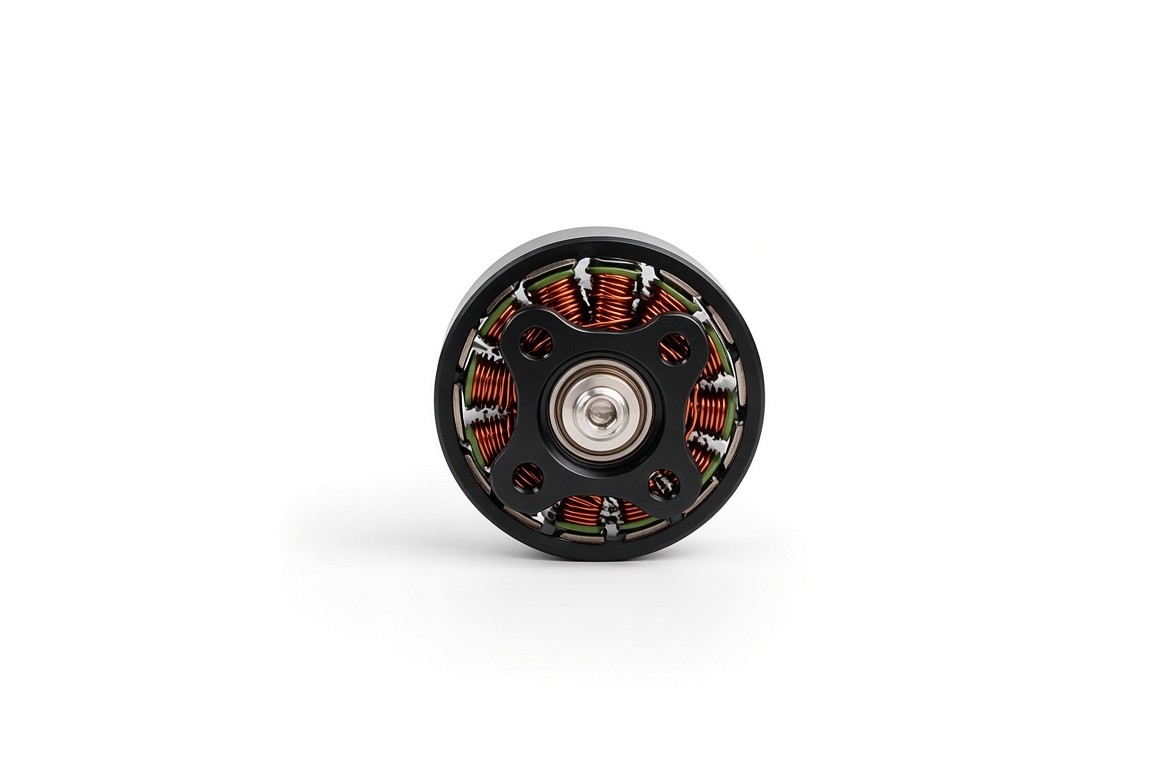

Vector Technics 2306 SL 1750 KV BLDC motor – view 3

No items found.

Vector Technics 2306 SL 1750 KV BLDC motor – view 1

Vector Technics 2306 SL 1750 KV BLDC motor – view 2

Vector Technics 2306 SL 1750 KV BLDC motor – view 3

No items found.

Multi Rotor Motors-FPV Series

2306 SL

2306 SL

1750 KV

Highlights

Motor Diameter

ø 28.20 mm

Motor Length

19.2 mm

Motor Weight

32 g ± 2 g

Specifications

Kv (Motor Velocity Constant) :

1750 RPM/V

Kt (Motor Torque Constant) :

0.0086 Nm/A

Maximum Continuous Current :

5.54 A (180s)

Maximum Continuous Power :

92.3 W (180s)

Power Density :

2.8 W/g (Rated), 8.7 W/g (Maximum)

Voltage Range :

15V - 25V (4S - 6S LiPo)

Io (XX@V) :

1.55 A (@ 16V)

Inductance per phase (Winding Inductance) :

0.0178 mH ± 5%

Stator Poles :

12S

Magnetic Poles :

14P

Bearings :

637_5_x-2z

Stick Out Shaft Diameter :

ø 5 mm

Motor Diameter :

ø 28.20 mm

Motor Length :

19.2 mm

Motor Weight :

32 g ± 2 g

Mount Pattern @ 90 deg :

4X M3 @ PCD ø 16 mm ↧ 2.8 mm

Compatible Propeller Size :

5 " inch

Propeller Mount Pattern :

M5 ↧ 8 mm

Specifications And Performace Data

2306 SL

/

1750 KV
