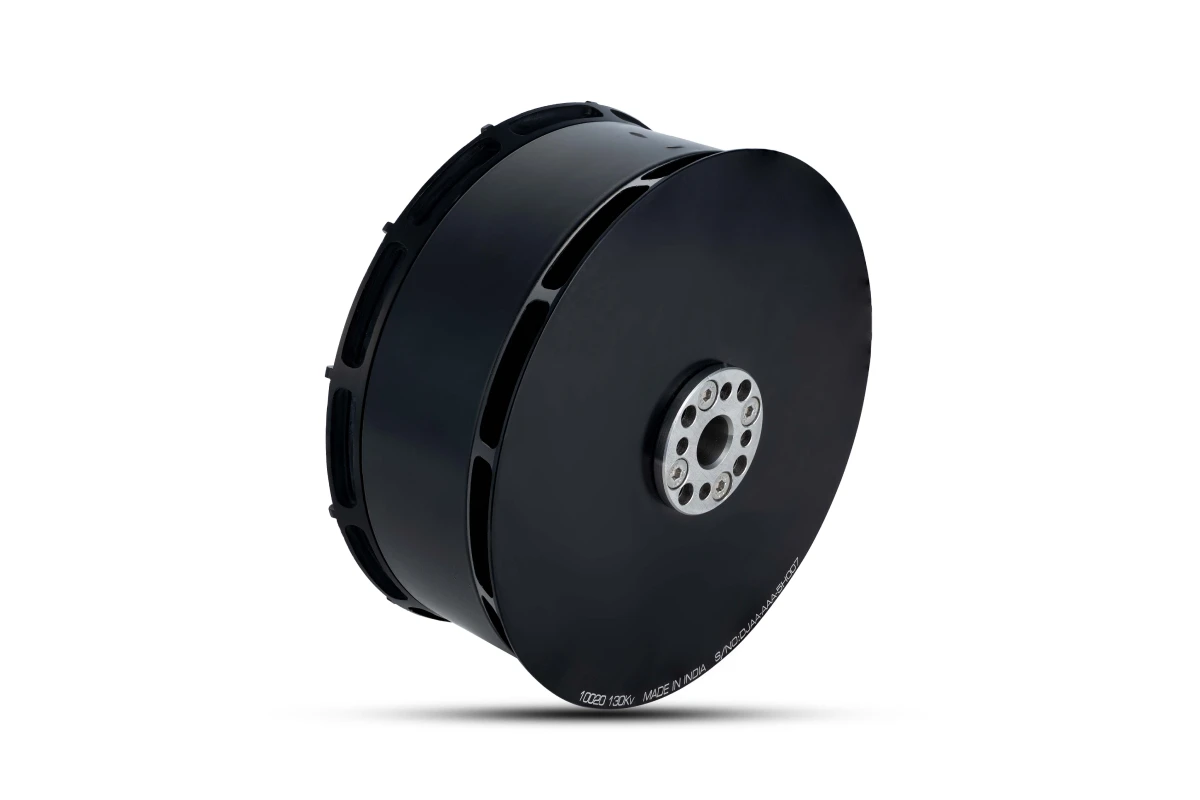

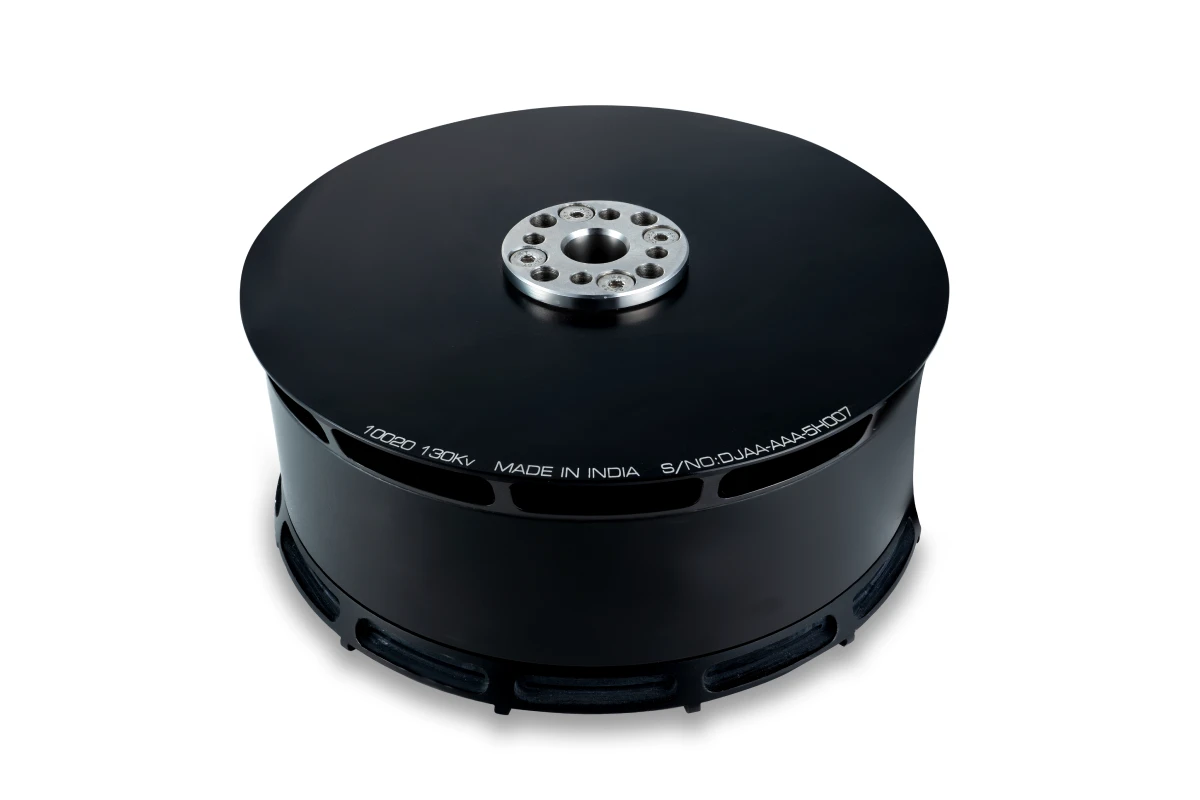

10020 PRO
Motor Diameter
ø 112 mm
Motor Length
47.7 mm
Motor Weight
860 g ± 2%
Kv (Motor Velocity Constant) :
150 RPM/V
Kt (Motor Torque Constant) :
0.0851 Nm/A @ 4170 RPM
Maximum Continuous Current :
75 A (180s)
Maximum Continuous Power :
3532 W (180s)
Power Density :
3.96 W/g (Rated), 7.38 W/g (Maximum)
Voltage Range :
44V - 52V ( 12S LiPo)
Io (XX@V) :
10A (48@V)
Inductance per phase (Winding Inductance) :
0.0103 ( ≃0.03) mH
Stator Poles :
36S
Magnetic Poles :
42P
Bearings :
Dual 6902-2Z Sealed
Stick Out Shaft Diameter :
ø 30 mm
Motor Diameter :
ø 112 mm
Motor Length :
47.7 mm
Motor Weight :
860 g ± 2%
Mount Pattern @ 90 deg :
4 X M5 @ PCD ø 50 mm ↧ 12.5 mm
Compatible Propeller Size :
30 " inch to 34 " inch
Propeller Mount Pattern :
4 X M3 @ PCD ø 20 mm ↧ 7.5 mm , 4 X M4 @ PCD ø 23 mm ↧ 12 mm
Specifications And Performace Data
