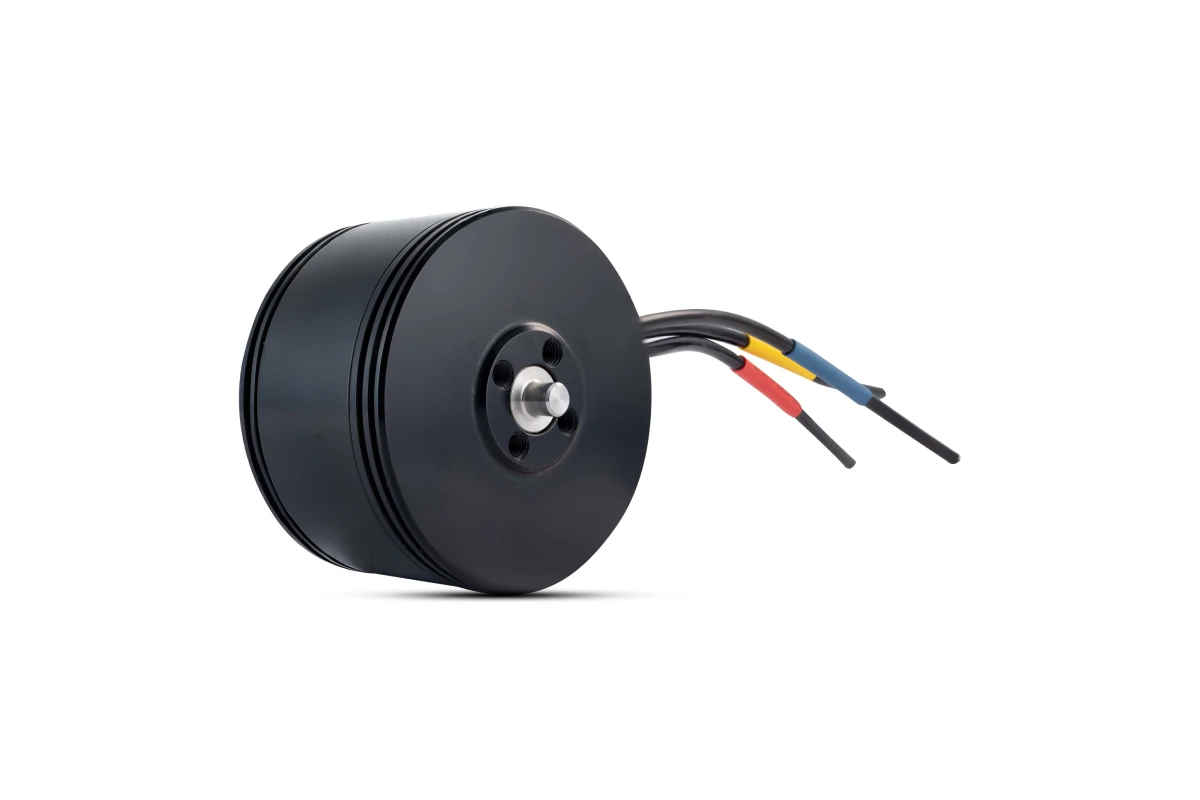

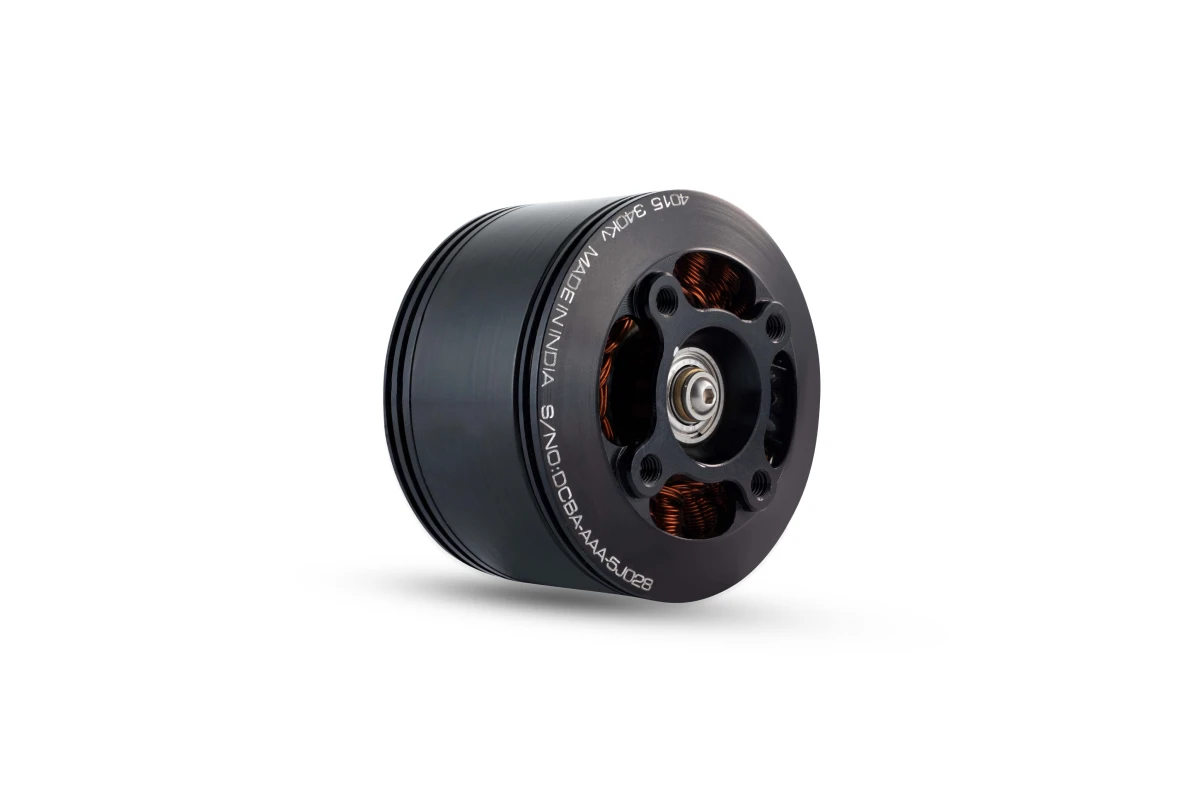

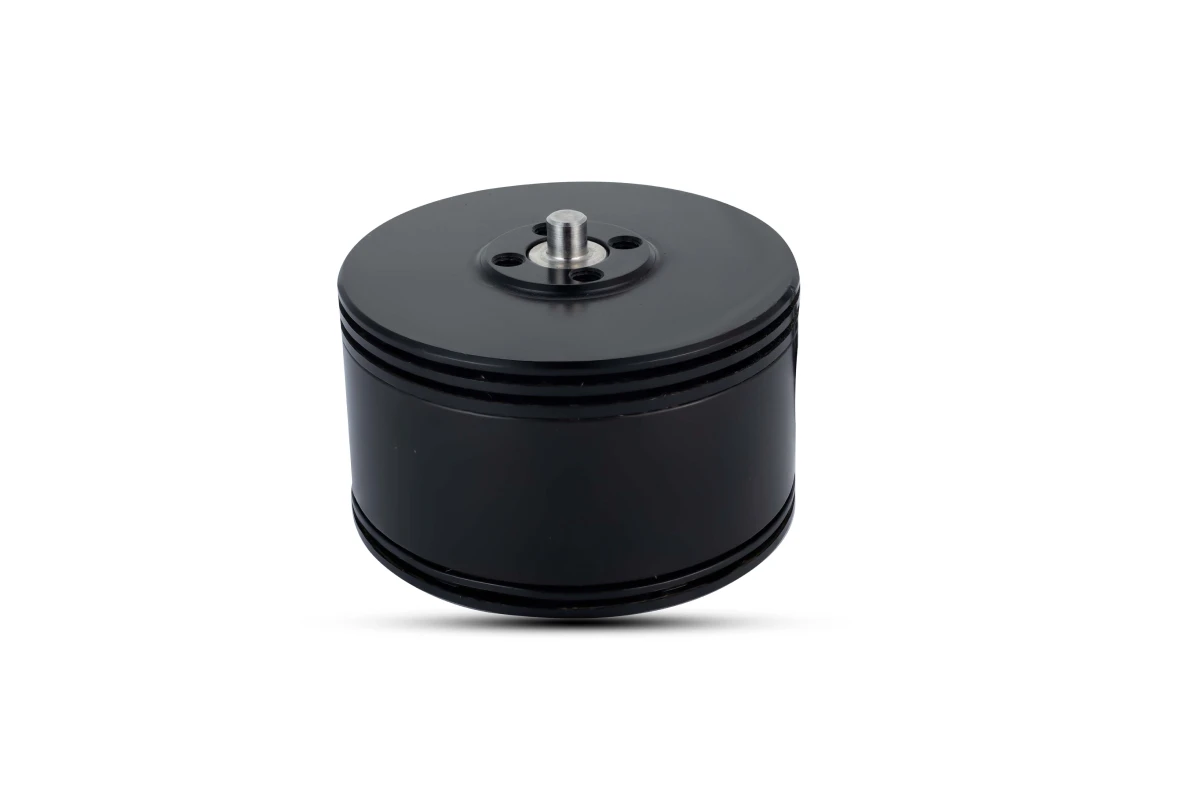

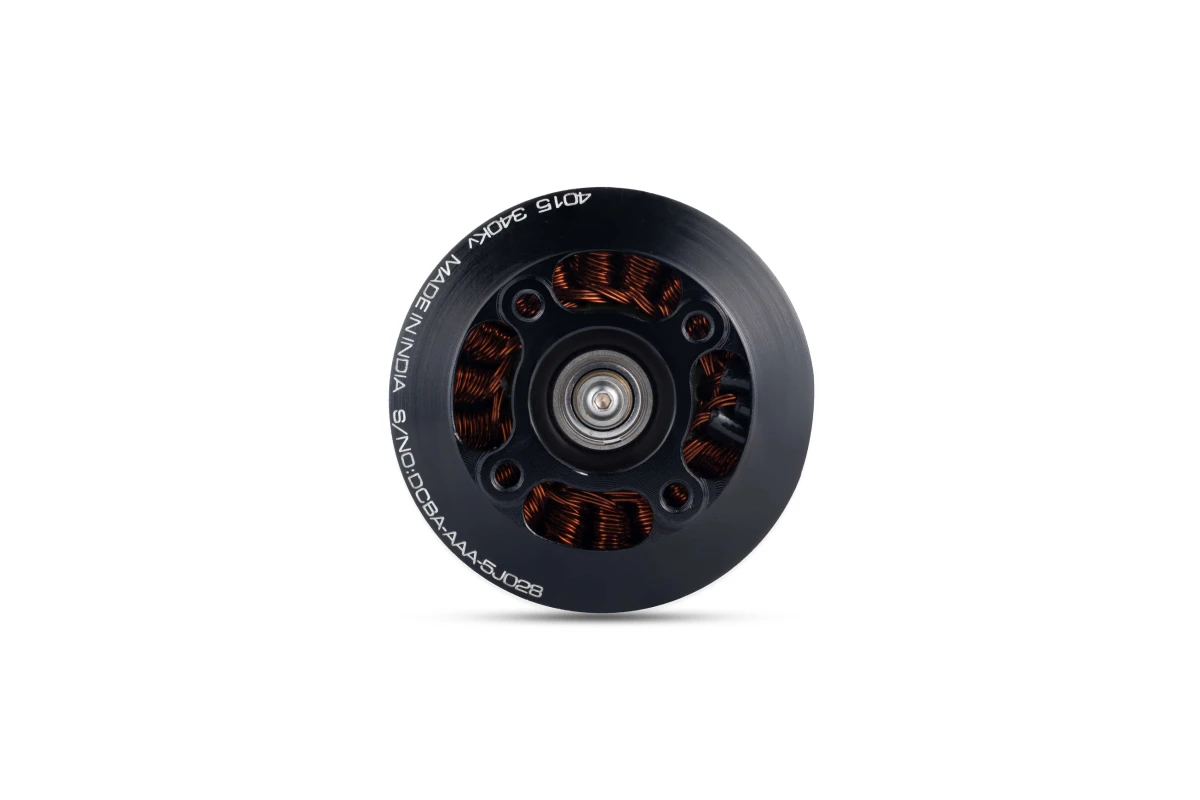

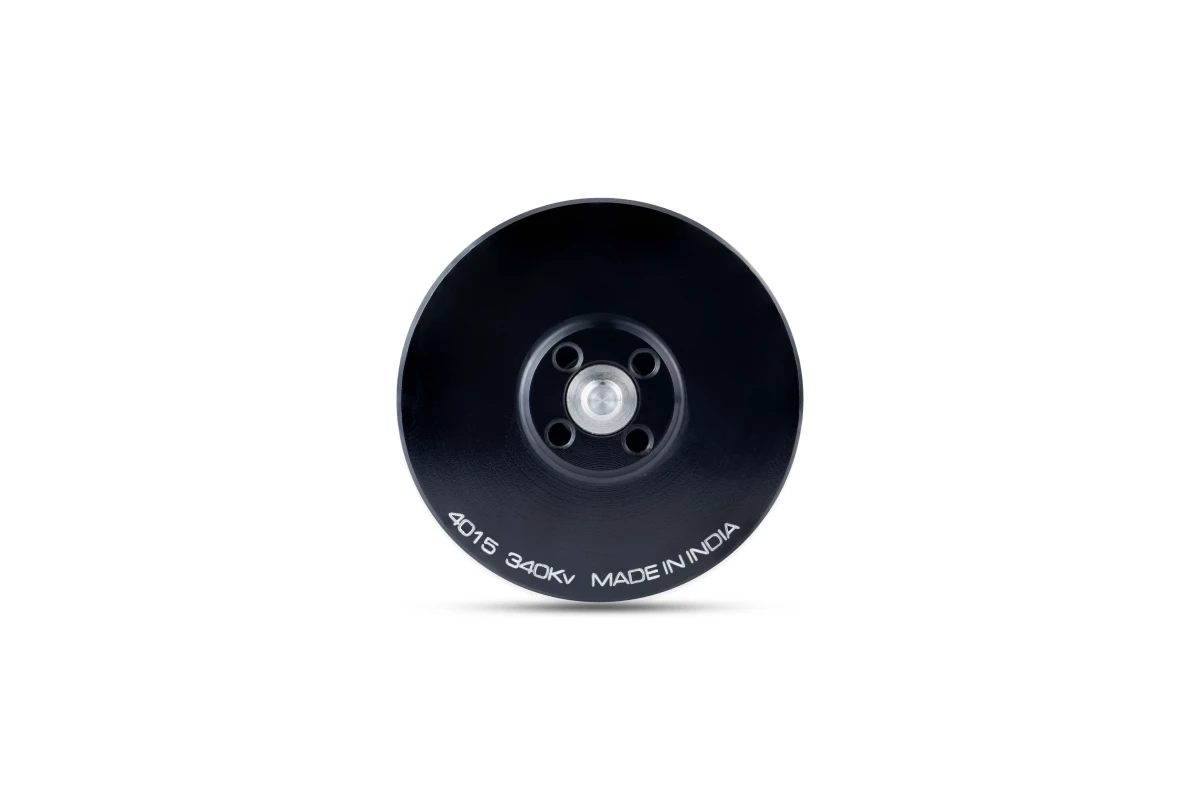

4015 PRO
Variants
Motor Diameter
ø 45.5 mm
Motor Length
30.9 mm
Motor Weight
165 g ± 2 g
Kv (Motor Velocity Constant) :
340 RPM/V
Kt (Motor Torque Constant) :
0.032 Nm/A @ 5706 RPM
Maximum Continuous Current :
15A (180s)
Maximum Continuous Power :
357W (180s)
Power Density :
1.85 W/g (Rated), 2.68 W/g (Maximum)
Voltage Range :
22V - 25V ( 6S LiPo)
Io (XX@V) :
0.9A (24@V)
Inductance per phase (Winding Inductance) :
0.042 ( ≃0.03) mH
Stator Poles :
18S
Magnetic Poles :
24P
Bearings :
Triple 619/4-2RS Sealed
Stick Out Shaft Diameter :
ø 3.8 mm
Motor Diameter :
ø 45.5 mm
Motor Length :
30.9 mm
Motor Weight :
165 g ± 2 g
Mount Pattern @ 90 deg :
4 X M3 @ PCD ø 25 mm ↧ 3 mm
Compatible Propeller Size :
14 " inch to 18 " inch
Propeller Mount Pattern :
4 X M3 @ PCD ø 12 mm ↧ 5 mm
