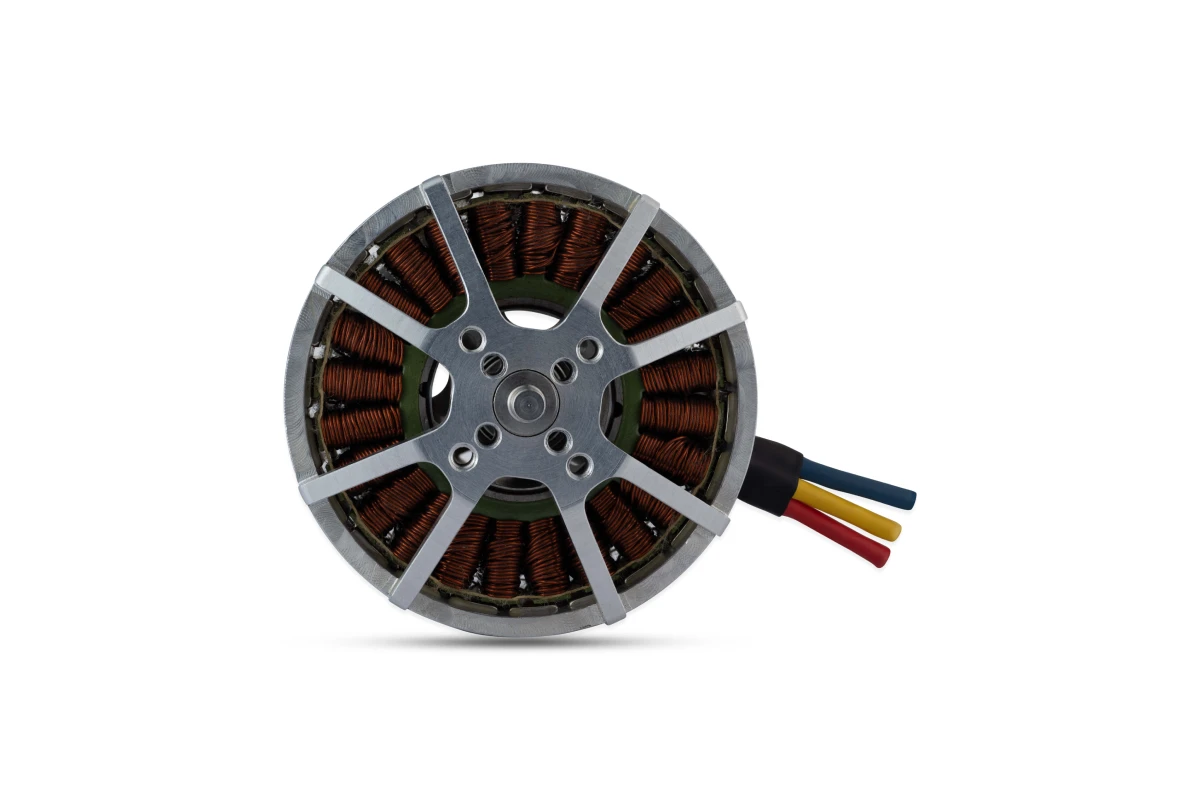

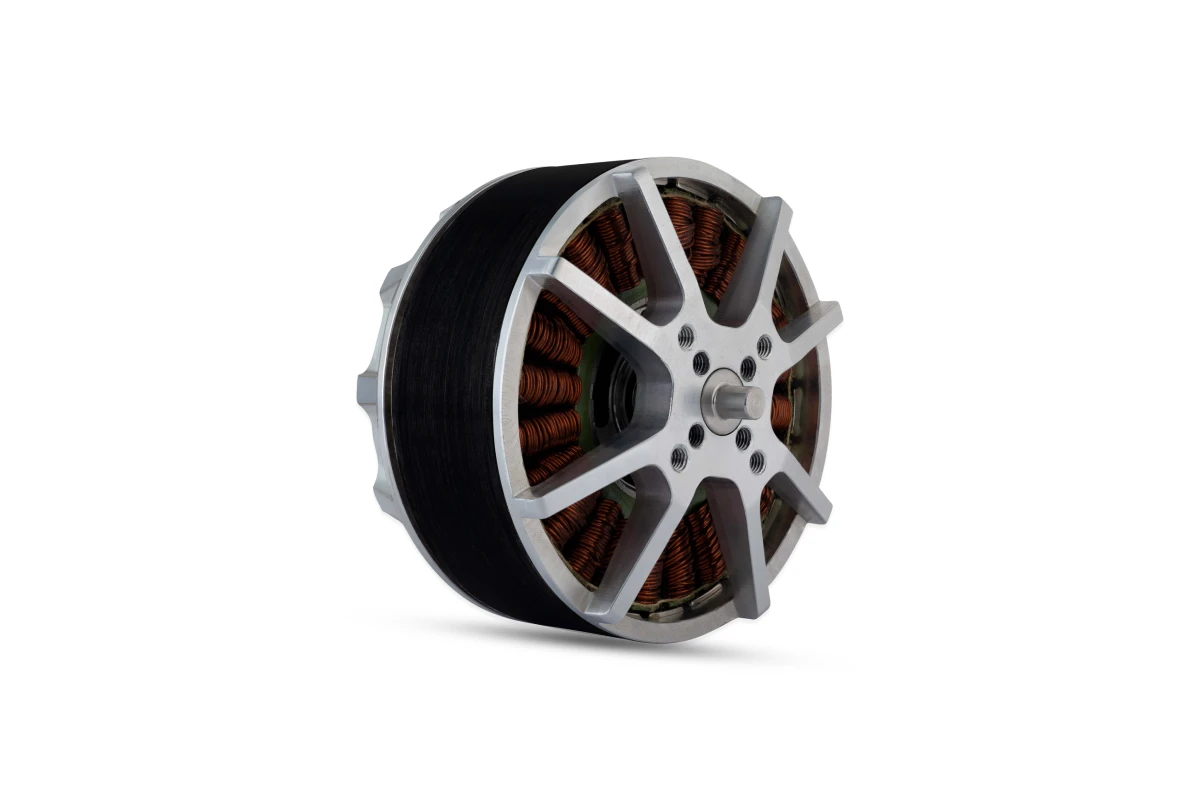

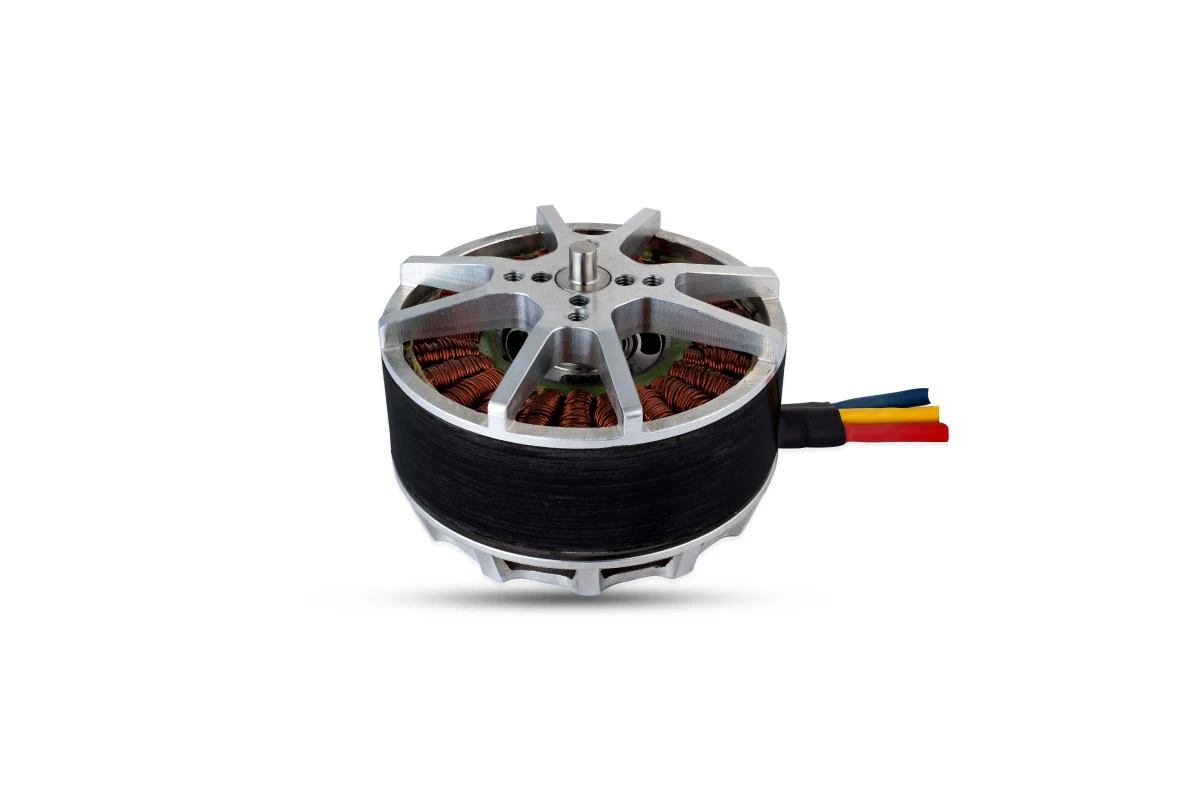

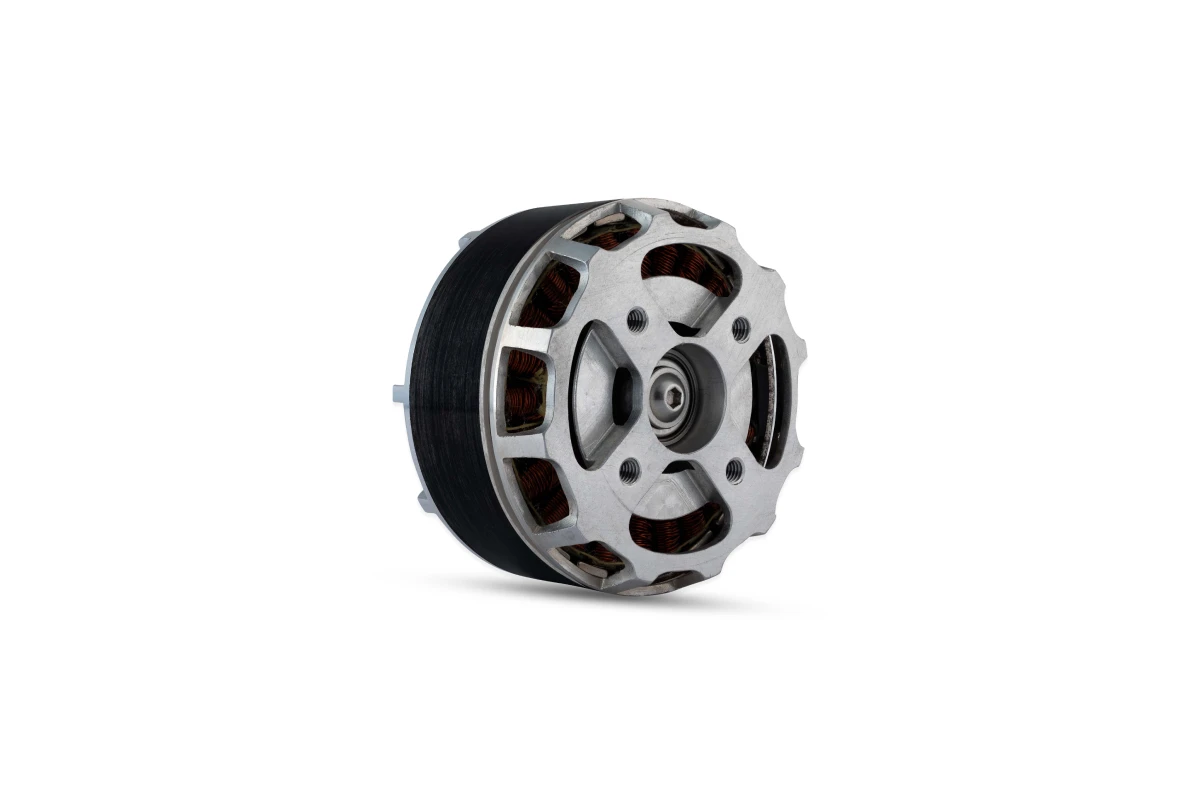

5215 FW
Motor Diameter
ø 35.5 mm
Motor Length
35.5 mm
Motor Weight
280 g ± 2 g
Kv (Motor Velocity Constant) :
480 RPM/V
Kt (Motor Torque Constant) :
1.07 Nm/A @ 3561 RPM
Maximum Continuous Current :
45A (180s)
Maximum Continuous Power :
1073 W (180s)
Power Density :
3.83 W/g (Rated), 6.203 W/g (Maximum)
Voltage Range :
22V - 25V ( 6S LiPo)
Io (XX@V) :
5.51A (24@V)
Inductance per phase (Winding Inductance) :
0.012 ( ≃0.03) mH
Stator Poles :
24S
Magnetic Poles :
22P
Bearings :
Dual 696-ZZ Sealed
Stick Out Shaft Diameter :
ø 4.8 mm
Motor Diameter :
ø 35.5 mm
Motor Length :
35.5 mm
Motor Weight :
280 g ± 2 g
Mount Pattern @ 90 deg :
4 X M4 @ PCD ø 30 mm ↧ 5 mm
Compatible Propeller Size :
14 " inch to 16 " inch
Propeller Mount Pattern :
8 X M3 @ PCD ø 12 mm, ø 20 mm ↧ 6 mm
Specifications And Performace Data
