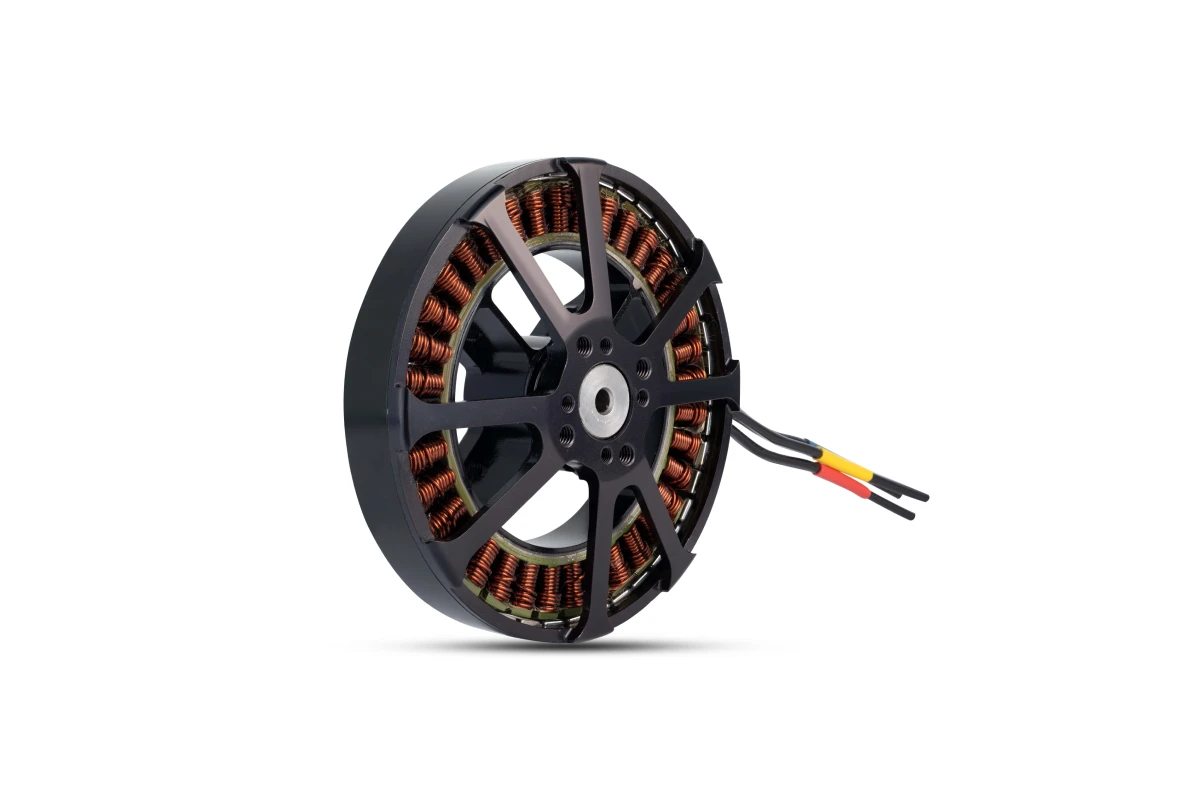

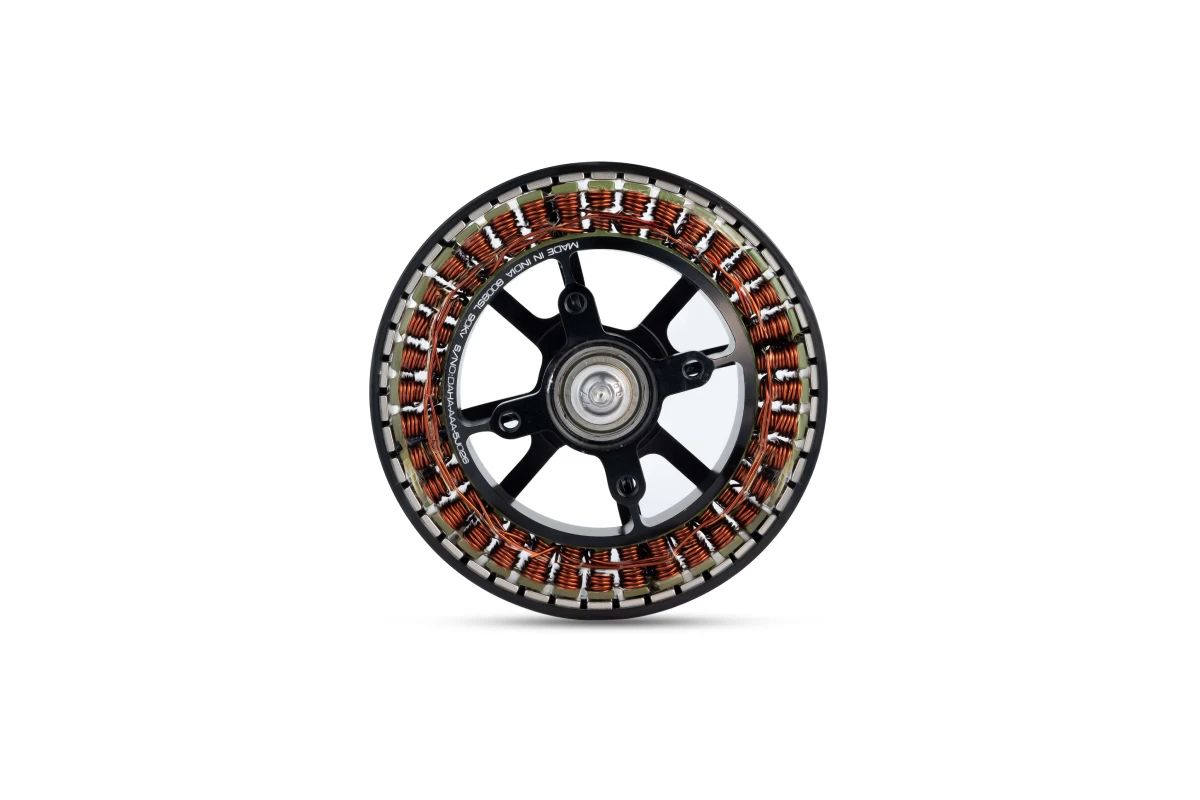

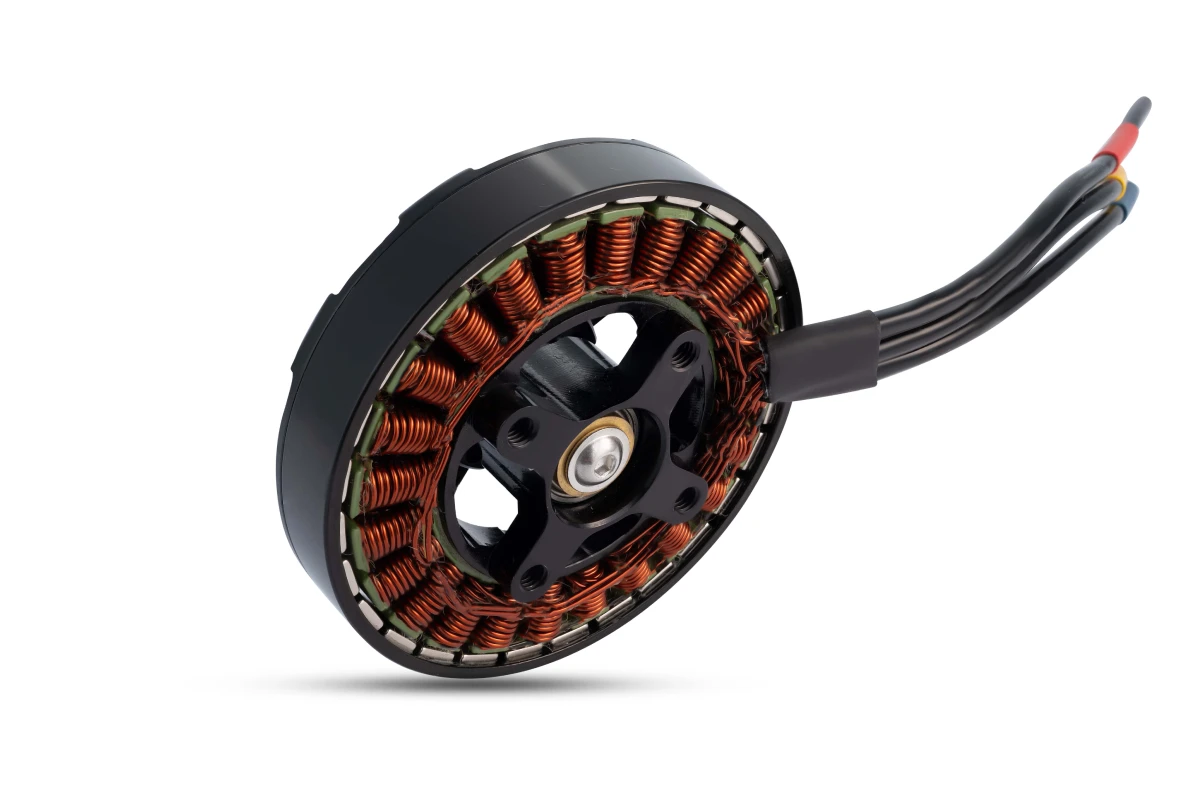

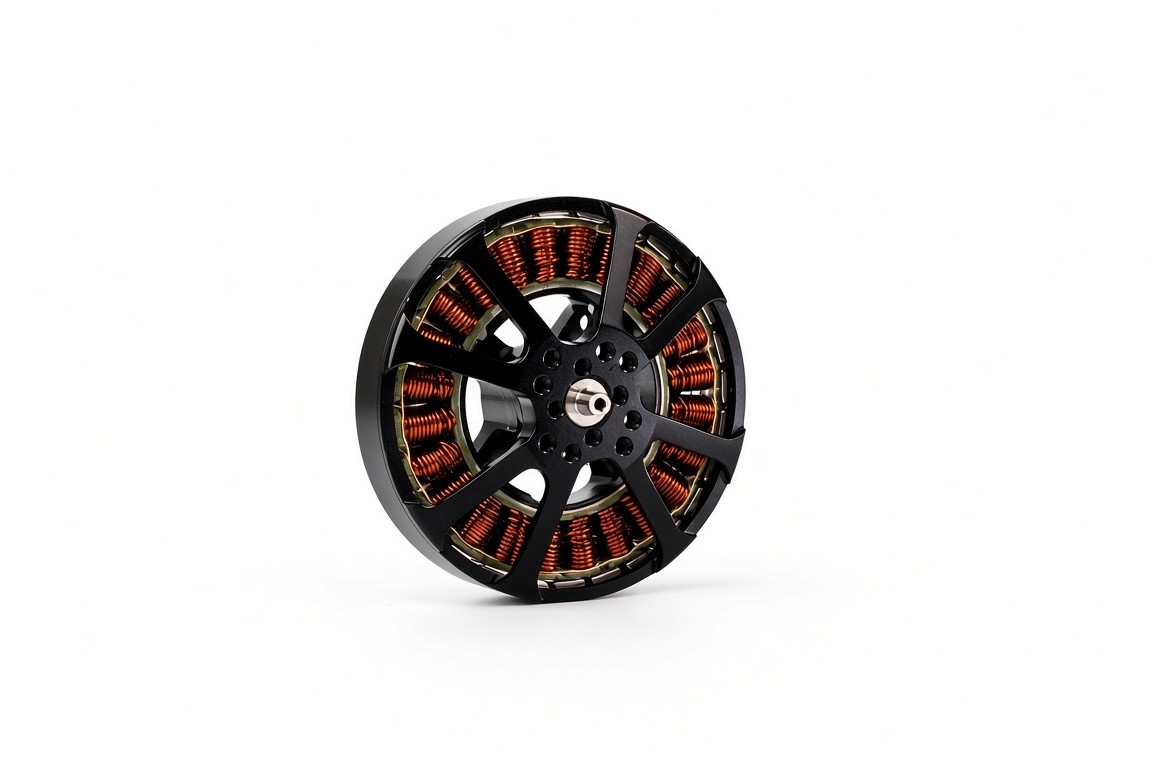

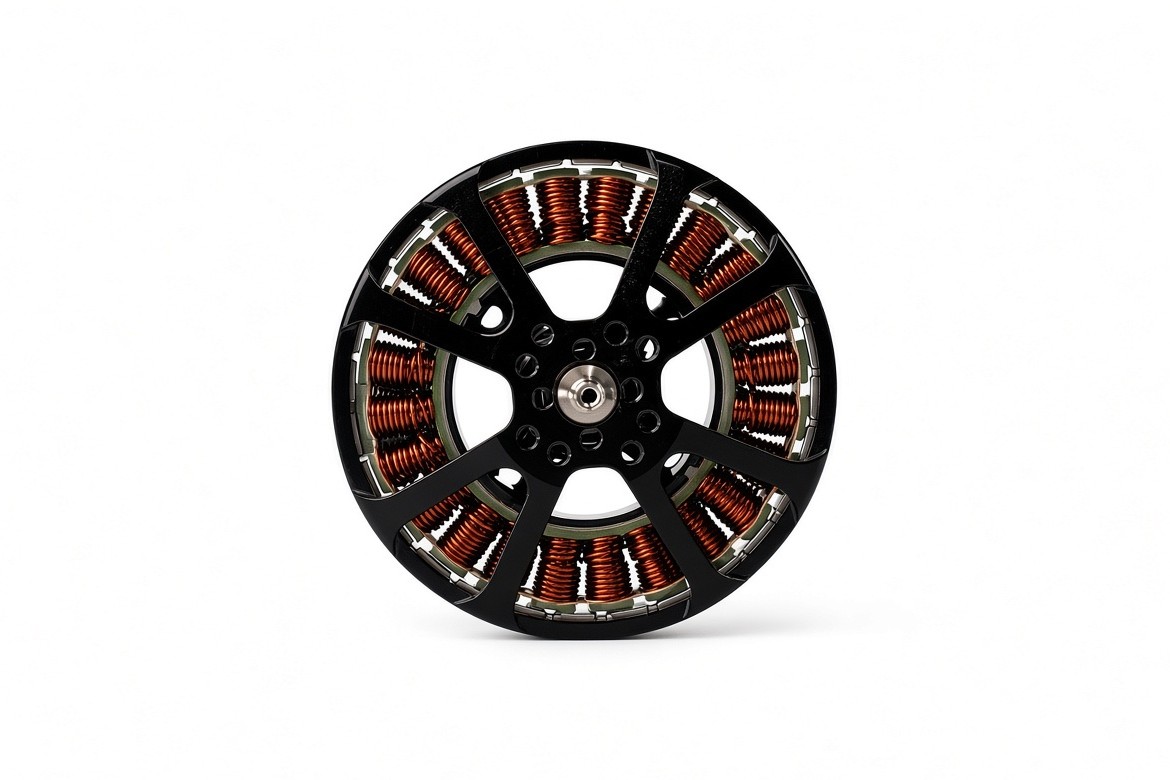

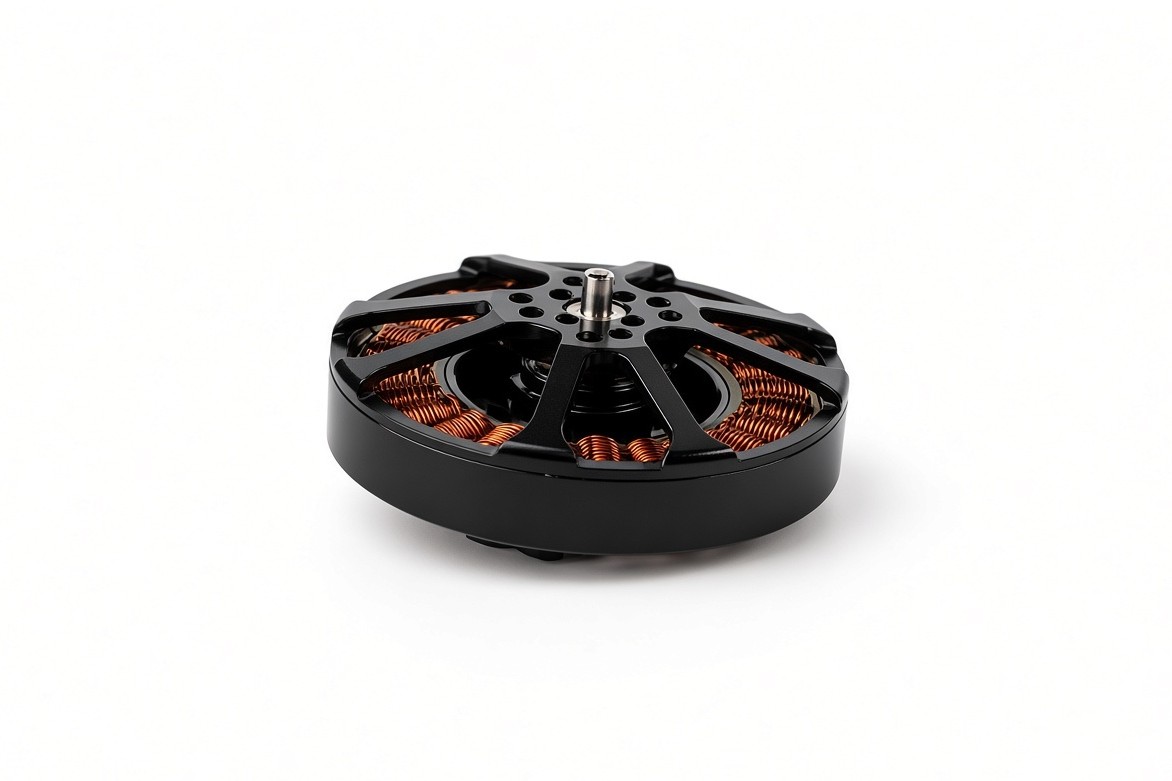

6008 SL
Voltage Range
22V - 25V ( 6S LiPo)
Motor Weight
170 g ± 5 g
Propeller Size
20 " inch to 22 " inch
Kv (Motor Velocity Constant) :
340 RPM/V
Kt (Motor Torque Constant) :
0.033 Nm/A @ 4766 RPM
Maximum Continuous Current :
35A (180s)
Maximum Continuous Power :
825W (180s)
Power Density :
3.40 W/g (Rated), 7.10 W/g (Maximum)
Voltage Range :
22V - 25V ( 6S LiPo)
Io (XX@V) :
1.7A (24@V)
Inductance per phase (Winding Inductance) :
0.046 ( ≃0.03) mH
Stator Poles :
24S
Magnetic Poles :
28P
Bearings :
Dual 696-ZZ Sealed
Stick Out Shaft Diameter :
ø 4 mm
Motor Diameter :
ø 68.8 mm
Motor Length :
24.3 mm
Motor Weight :
170 g ± 5 g
Mount Pattern @ 90 deg :
4 X M3 @ PCD ø 30 mm ↧ 5 mm
Compatible Propeller Size :
20 " inch to 22 " inch
Propeller Mount Pattern :
12 X M3 @ PCD ø 12 mm ø 18 mm, ø 20 mm with ↧ 5 mm
Specifications And Performace Data
