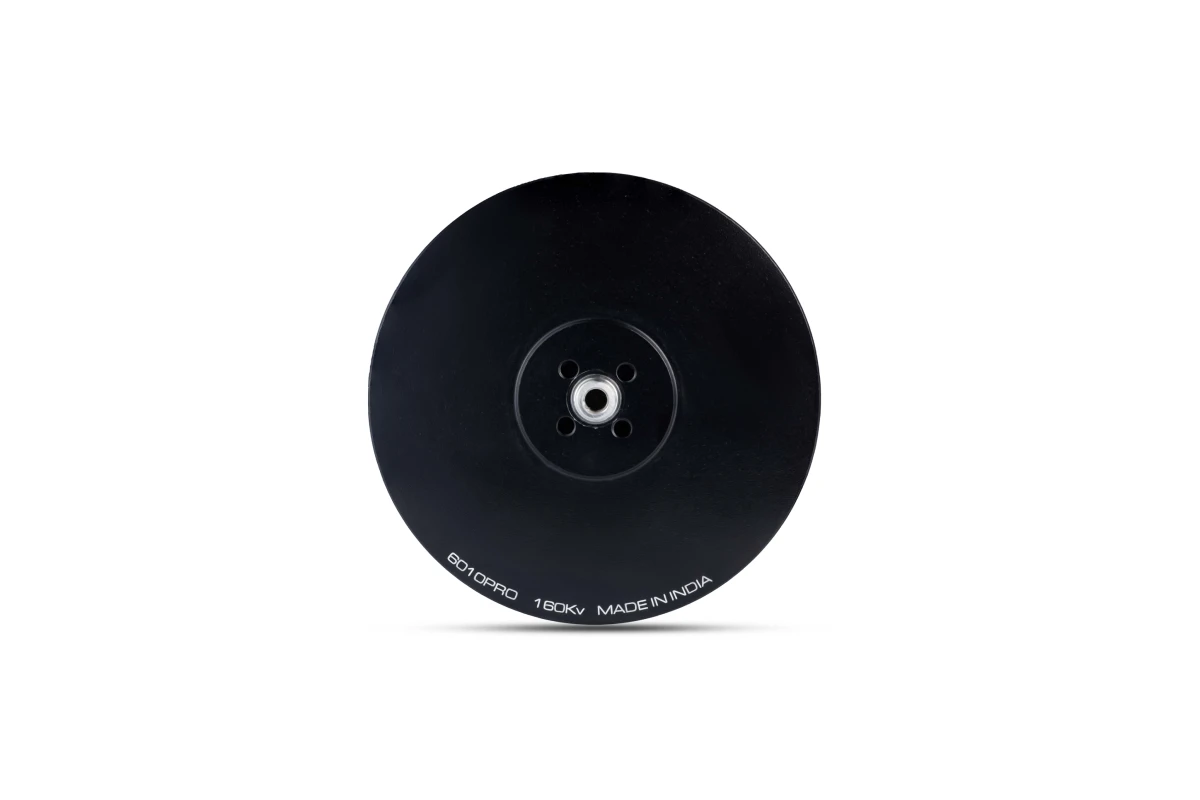

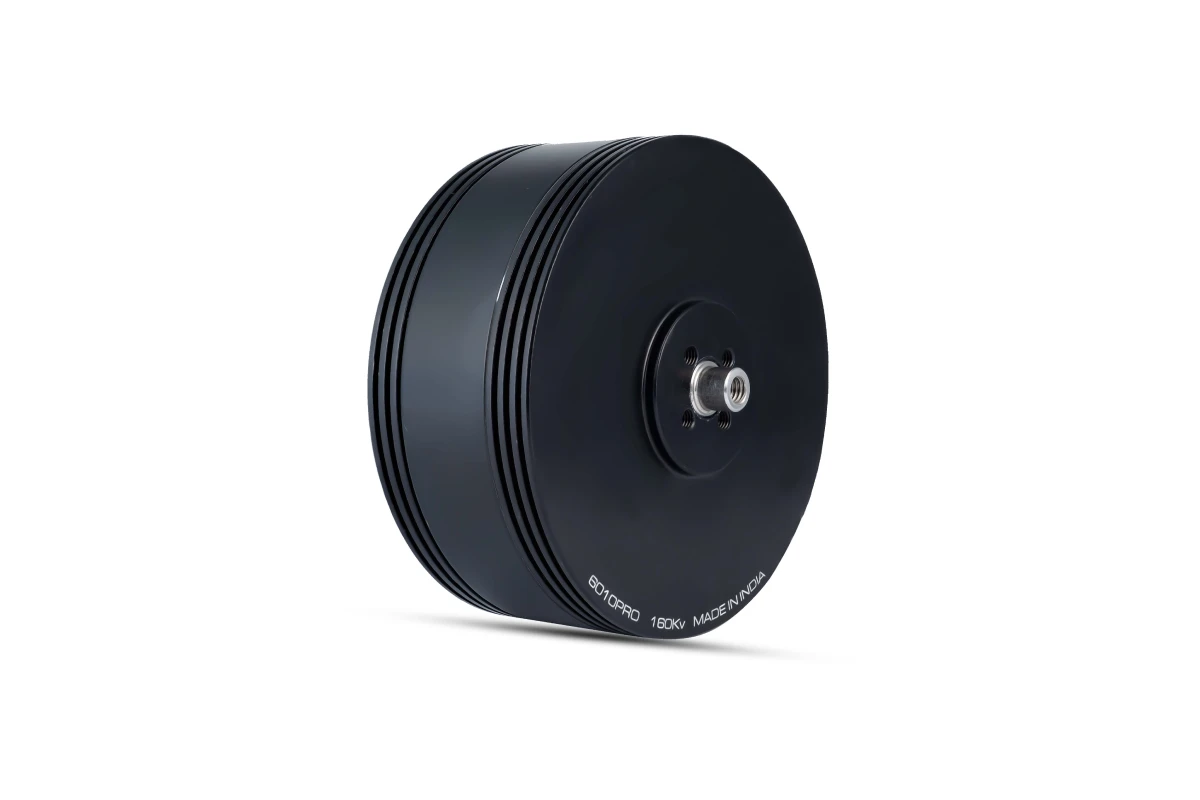

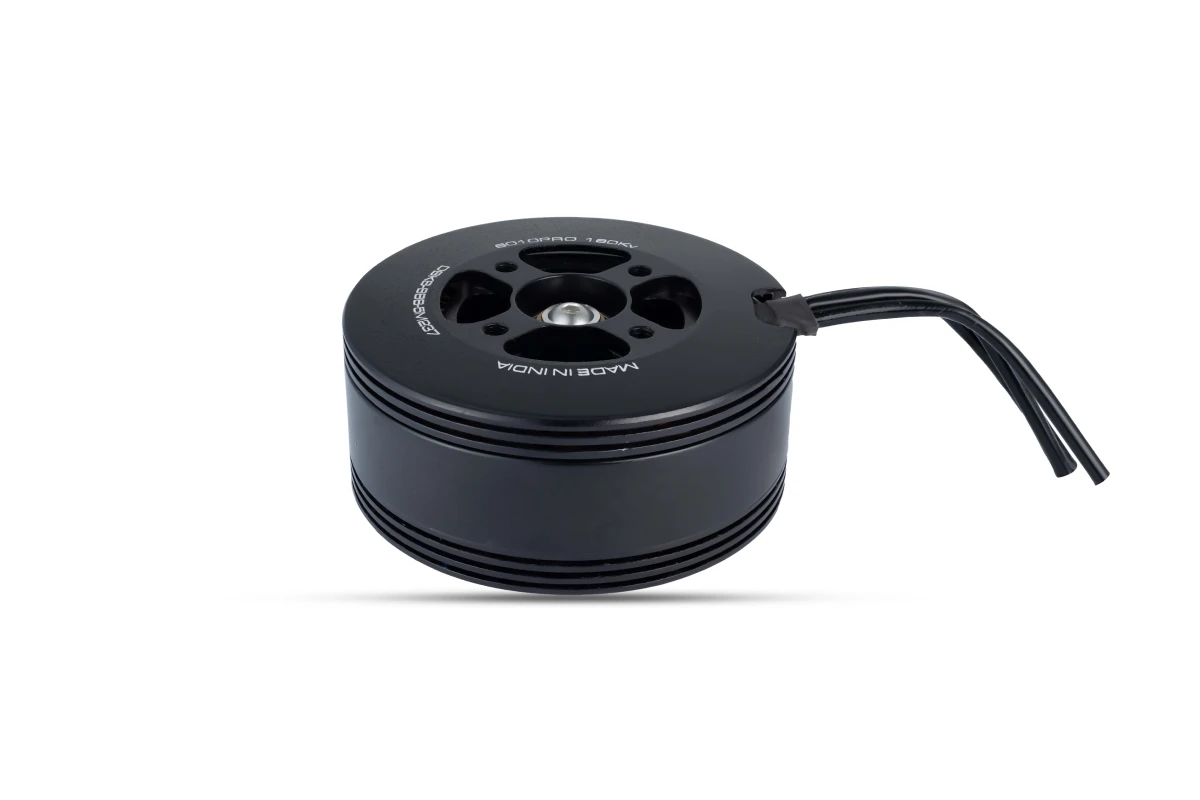

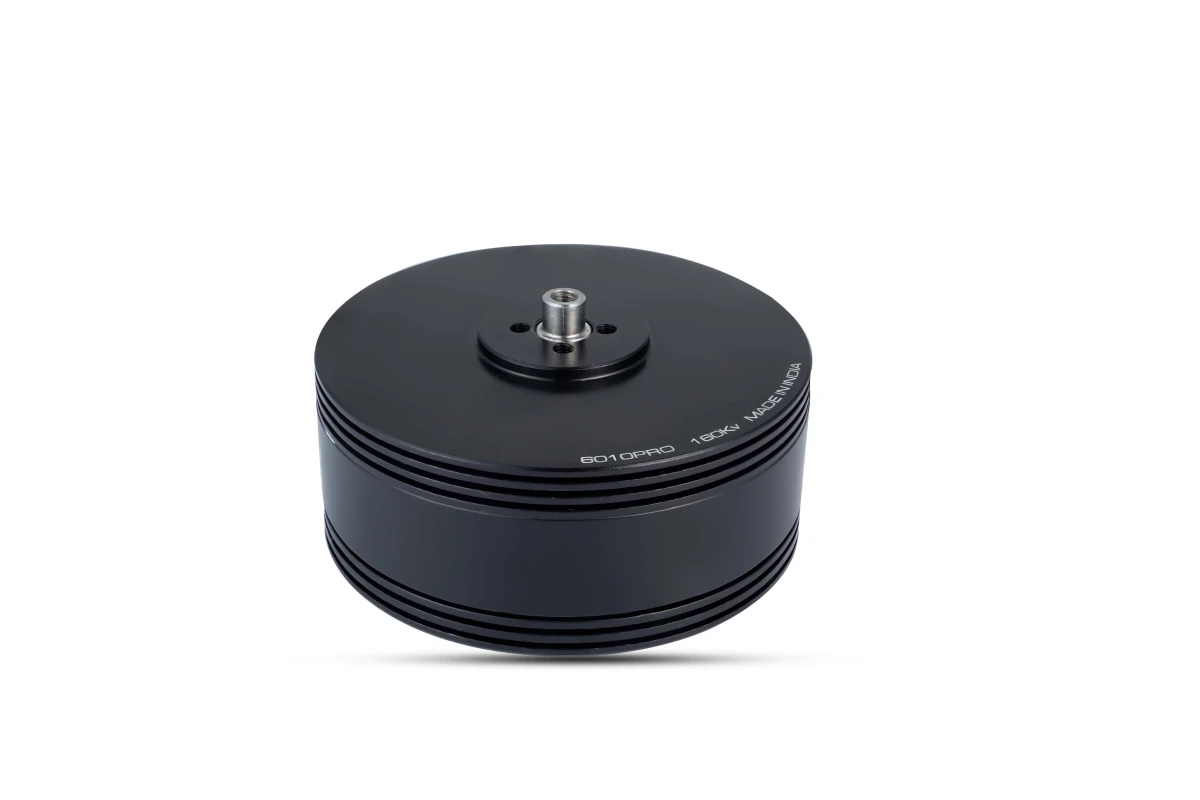

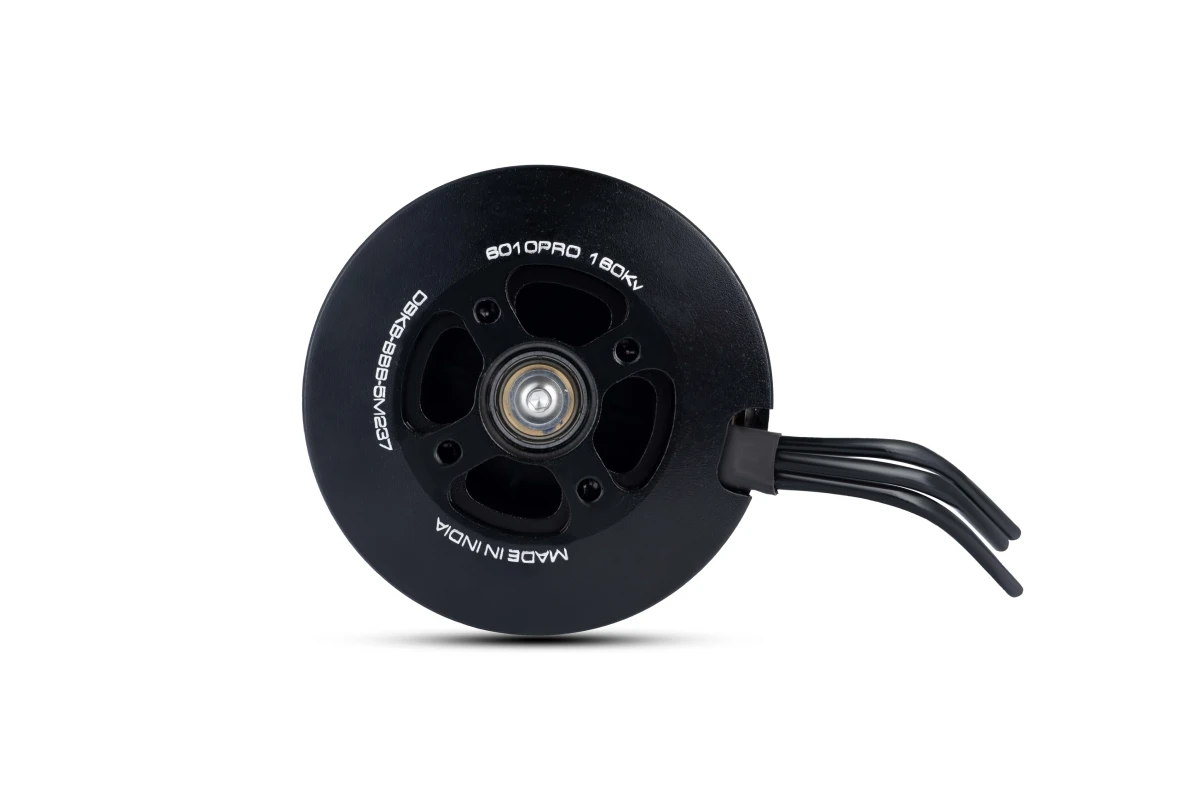

6010 PRO
Variants
Motor Diameter
ø 68.8 mm
Motor Length
32 mm
Motor Weight
240 g ± 10 g
Kv (Motor Velocity Constant) :
160 RPM/V
Kt (Motor Torque Constant) :
0.029 Nm/A @ 4250 RPM
Maximum Continuous Current :
20A (180s)
Maximum Continuous Power :
910W (180s)
Power Density :
3.79 W/g (Rated), 7.13 W/g (Maximum)
Voltage Range :
44V - 50V ( 12S LiPo)
Io (XX@V) :
1.2A (48@V)
Inductance per phase (Winding Inductance) :
0.102 ( ≃0.03) mH
Stator Poles :
24S
Magnetic Poles :
28P
Bearings :
Dual 626-2Z Sealed
Stick Out Shaft Diameter :
ø 4.8 mm
Motor Diameter :
ø 68.8 mm
Motor Length :
32 mm
Motor Weight :
240 g ± 10 g
Mount Pattern @ 90 deg :
12 X M3 @ PCD ø 12 mm, ø 18 mm, ø 20 mm with ↧ 8 mm
Compatible Propeller Size :
20 " inch to 23 " inch
Propeller Mount Pattern :
4 X M4 @ PCD ø 30 mm ↧ 8 mm
