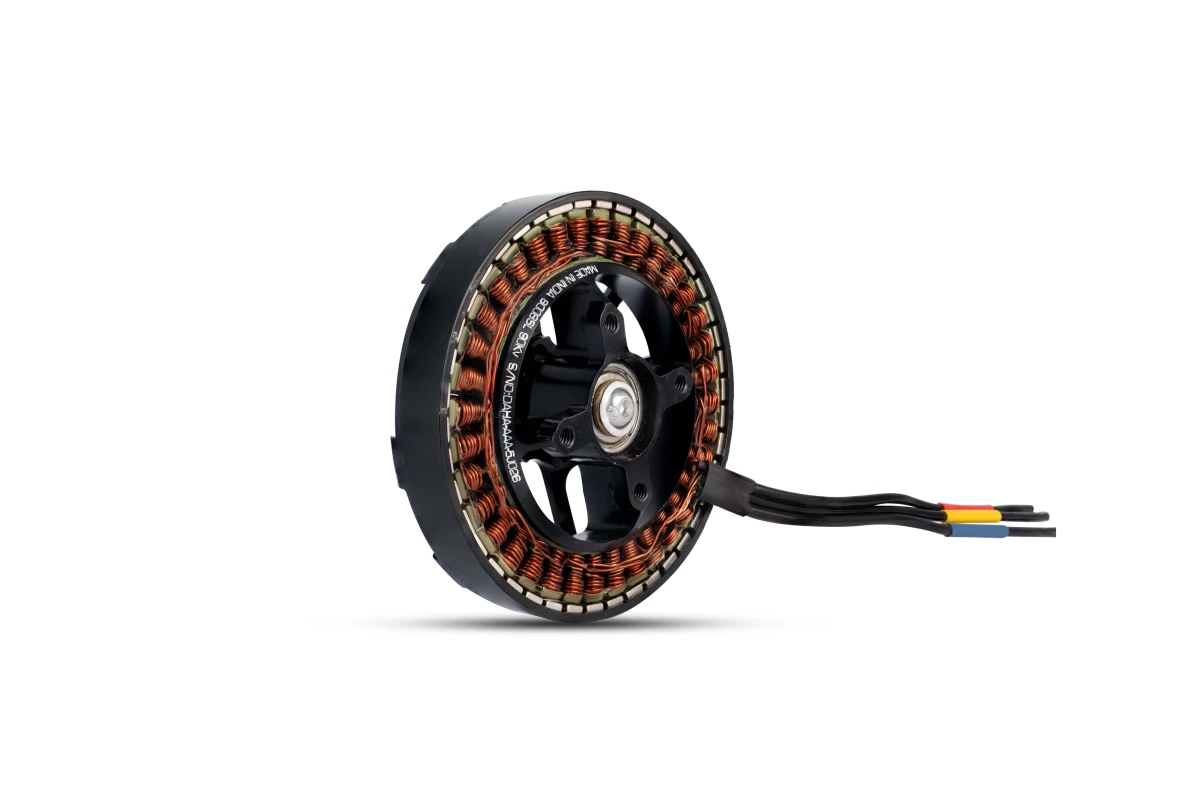

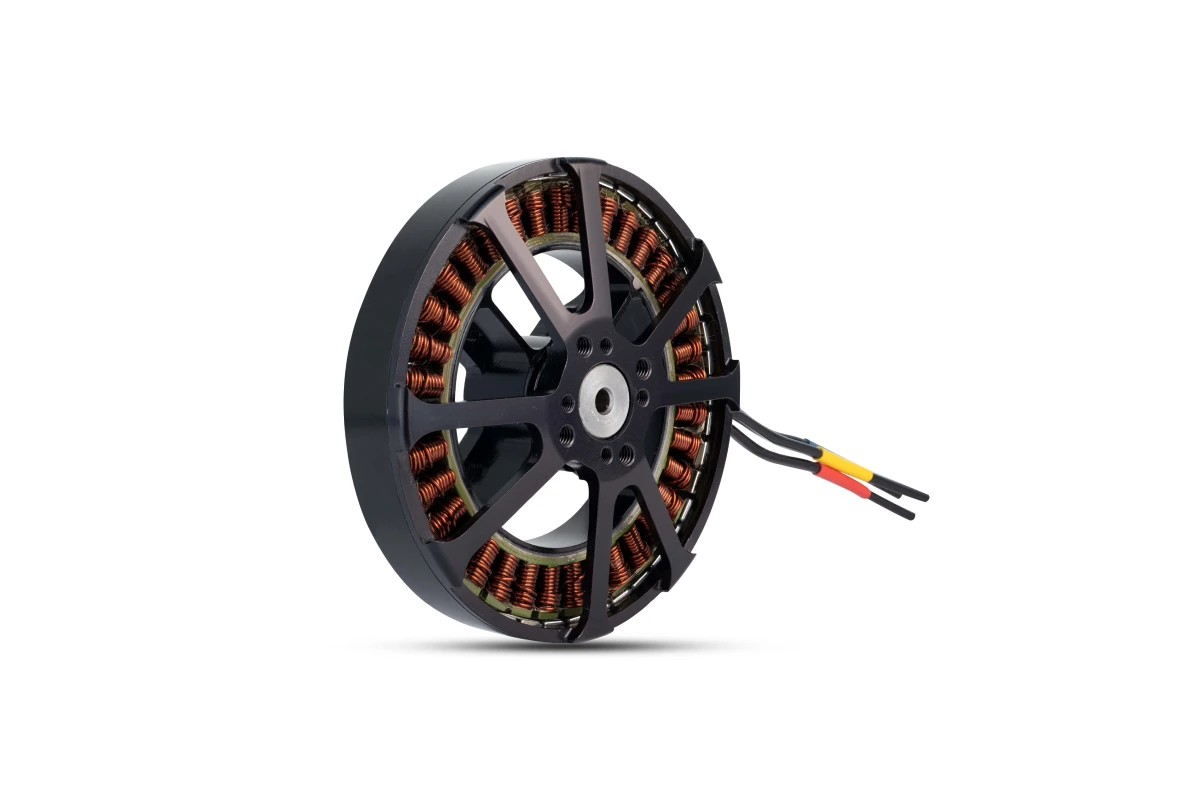

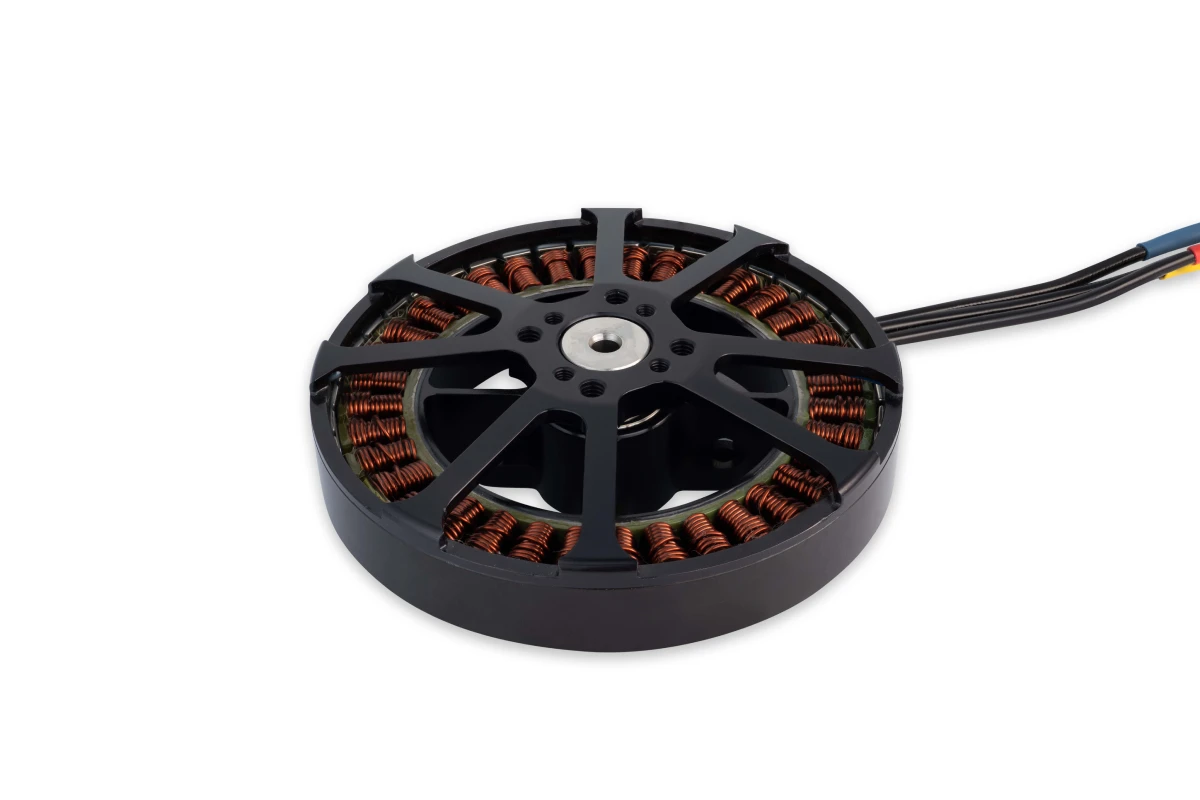

8008 SL
Variants
Motor Diameter
ø 88.4 mm
Motor Length
26 mm
Motor Weight
210 g ± 5 g
Kv (Motor Velocity Constant) :
90 RPM/V
Kt (Motor Torque Constant) :
0.139 Nm/A @ 2621 RPM
Maximum Continuous Current :
20A (180s)
Maximum Continuous Power :
966W (180s)
Power Density :
4.01 W/g (Rated), 5.69 W/g (Maximum)
Voltage Range :
44V - 50V ( 12S LiPo)
Io (XX@V) :
2A (48@V)
Inductance per phase (Winding Inductance) :
0.17 ( ≃0.03) mH
Stator Poles :
36S
Magnetic Poles :
42P
Bearings :
Dual 619 /8-2Z Sealed
Stick Out Shaft Diameter :
ø 0 mm
Motor Diameter :
ø 88.4 mm
Motor Length :
26 mm
Motor Weight :
210 g ± 5 g
Mount Pattern @ 90 deg :
4 X M3 @ PCD ø 30 mm ↧ 5 mm
Compatible Propeller Size :
28 " inch to 30 " inch
Propeller Mount Pattern :
8 X M3 @ PCD ø 20 mm, ø 23 mm with ↧ 5 mm
