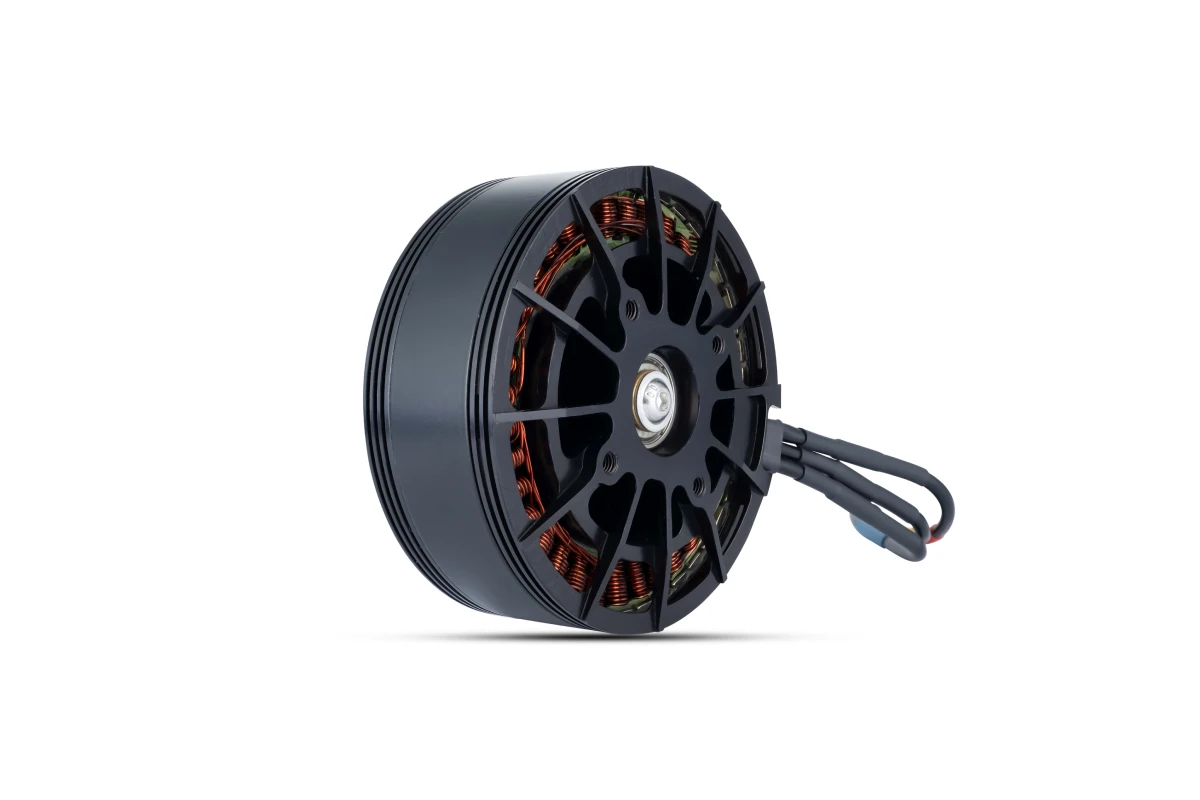

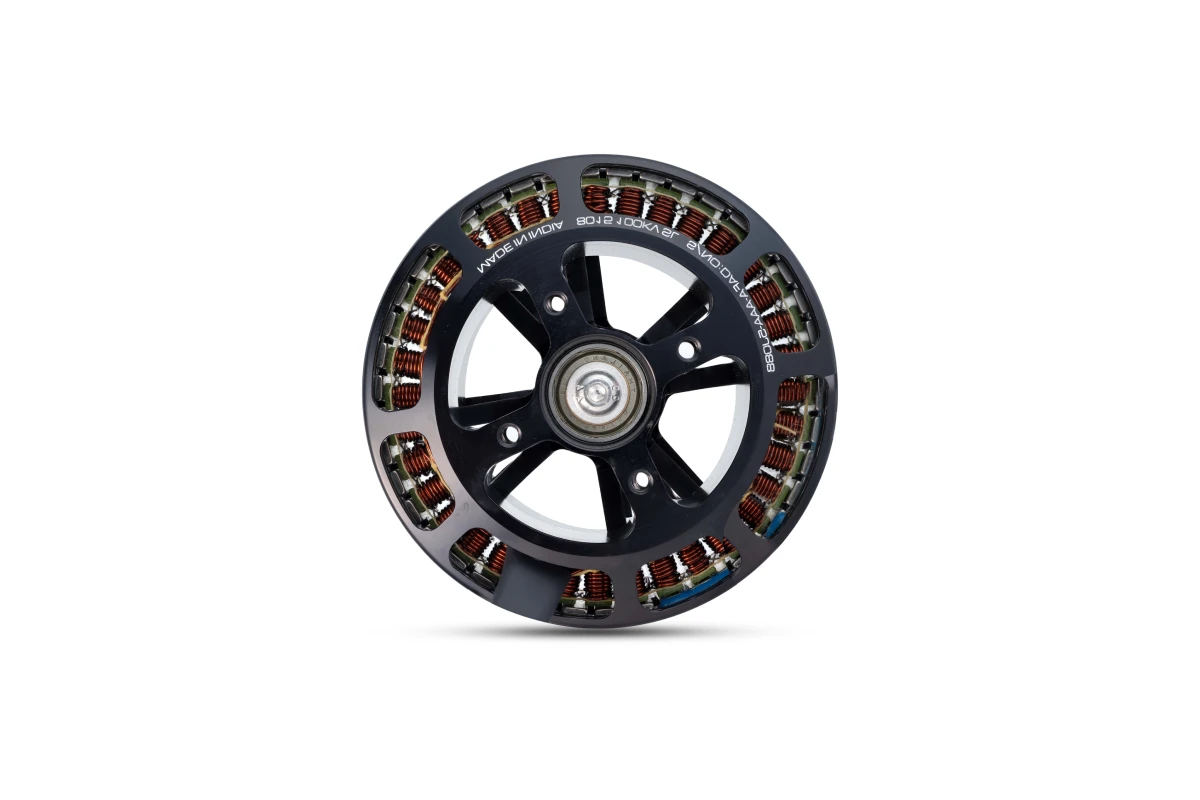

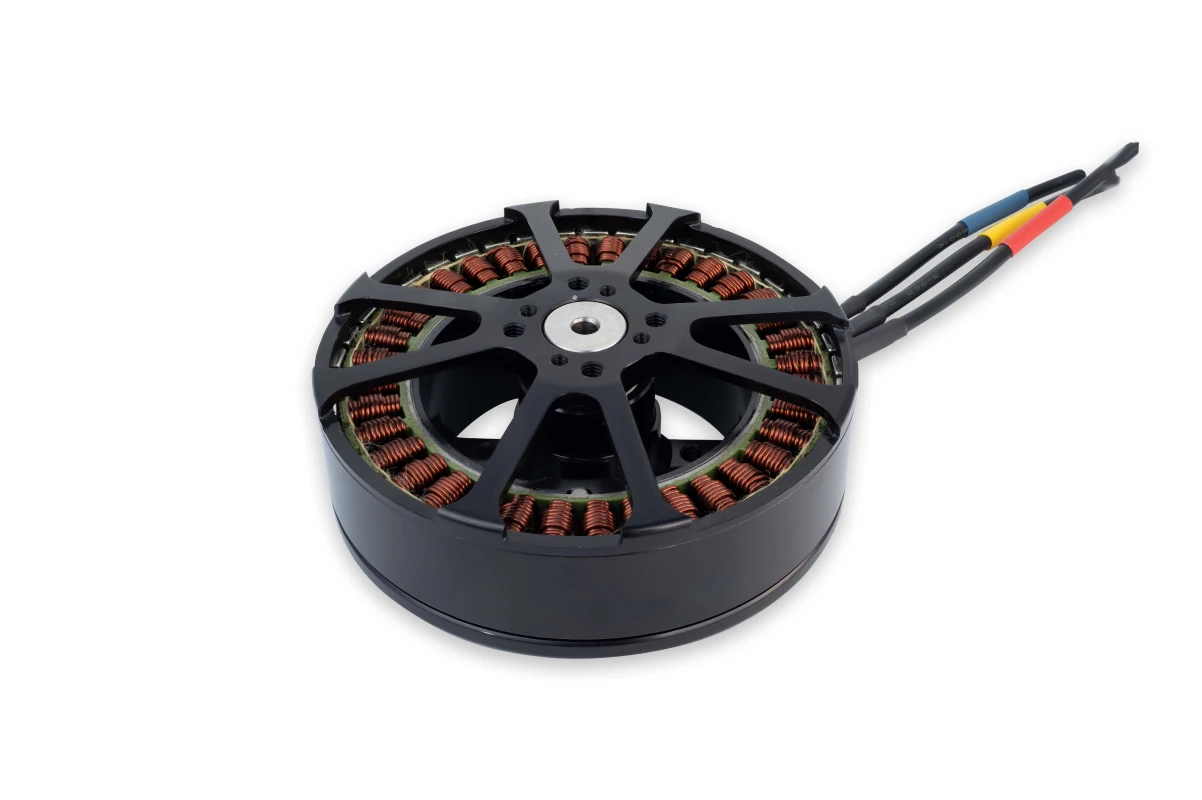

8015 SL
Motor Diameter
ø 88.4 mm
Motor Length
34 mm
Motor Weight
420 g ± 5 g
Kv (Motor Velocity Constant) :
100 RPM/V
Kt (Motor Torque Constant) :
0.1245 Nm/A @ 2995 RPM
Maximum Continuous Current :
40A (180s)
Maximum Continuous Power :
1495W (180s)
Power Density :
4.5 W/g (Rated), 6.4 W/g (Maximum)
Voltage Range :
44V - 50V ( 12S LiPo)
Io (XX@V) :
1.64A (48@V)
Inductance per phase (Winding Inductance) :
0.033 ( ≃0.03) mH
Stator Poles :
36S
Magnetic Poles :
42P
Bearings :
Dual 689 Sealed
Stick Out Shaft Diameter :
ø 0 mm
Motor Diameter :
ø 88.4 mm
Motor Length :
34 mm
Motor Weight :
420 g ± 5 g
Mount Pattern @ 90 deg :
4 X M4 @ PCD ø 36 mm ↧ 7 mm
Compatible Propeller Size :
28 " inch to 30 " inch
Propeller Mount Pattern :
4 X M3 @ PCD ø 20 mm ↧ 5 mm, 4 X M4 @ PCD ø 23 mm ↧ 5 mm
Specifications And Performace Data
