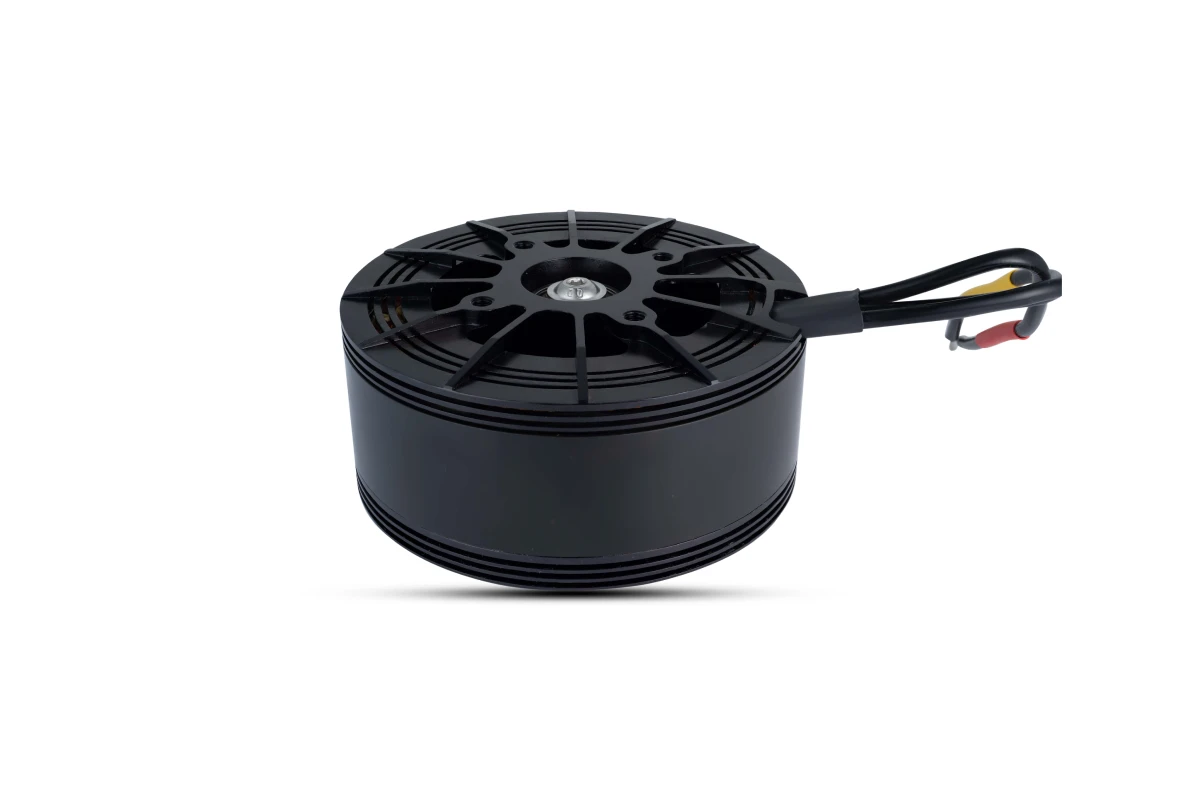

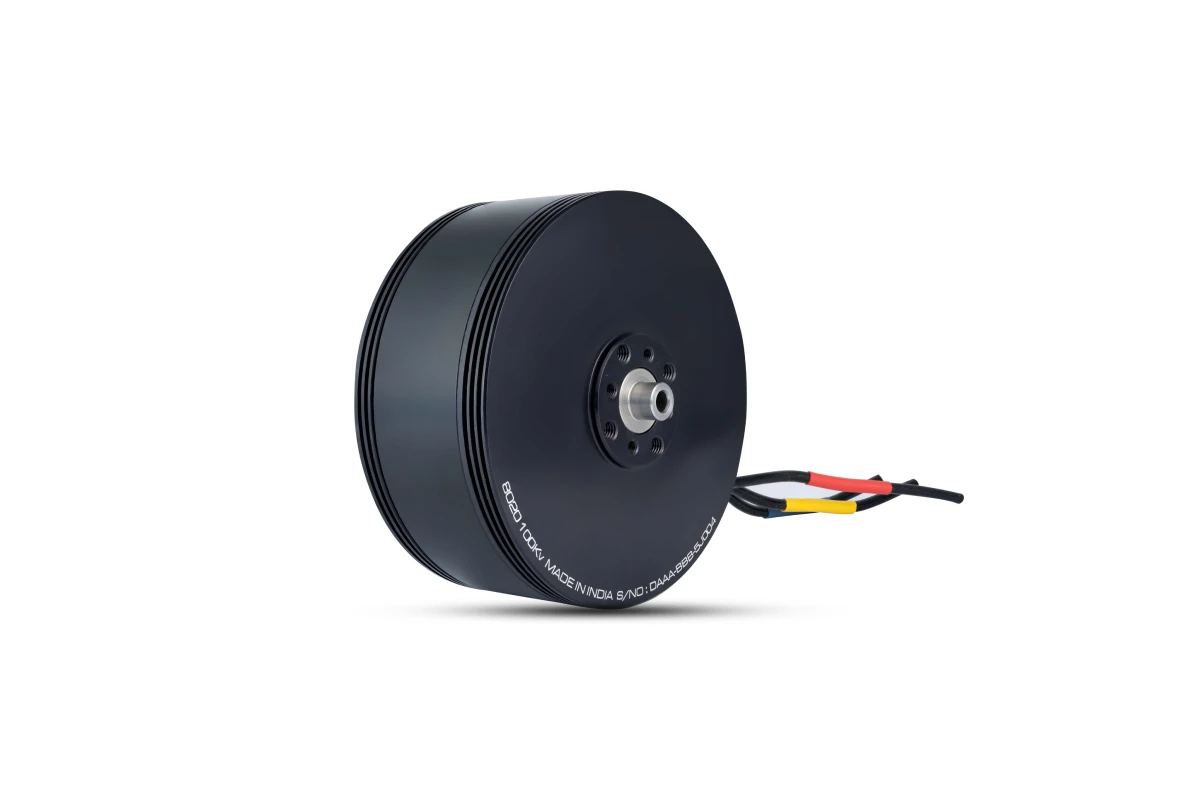

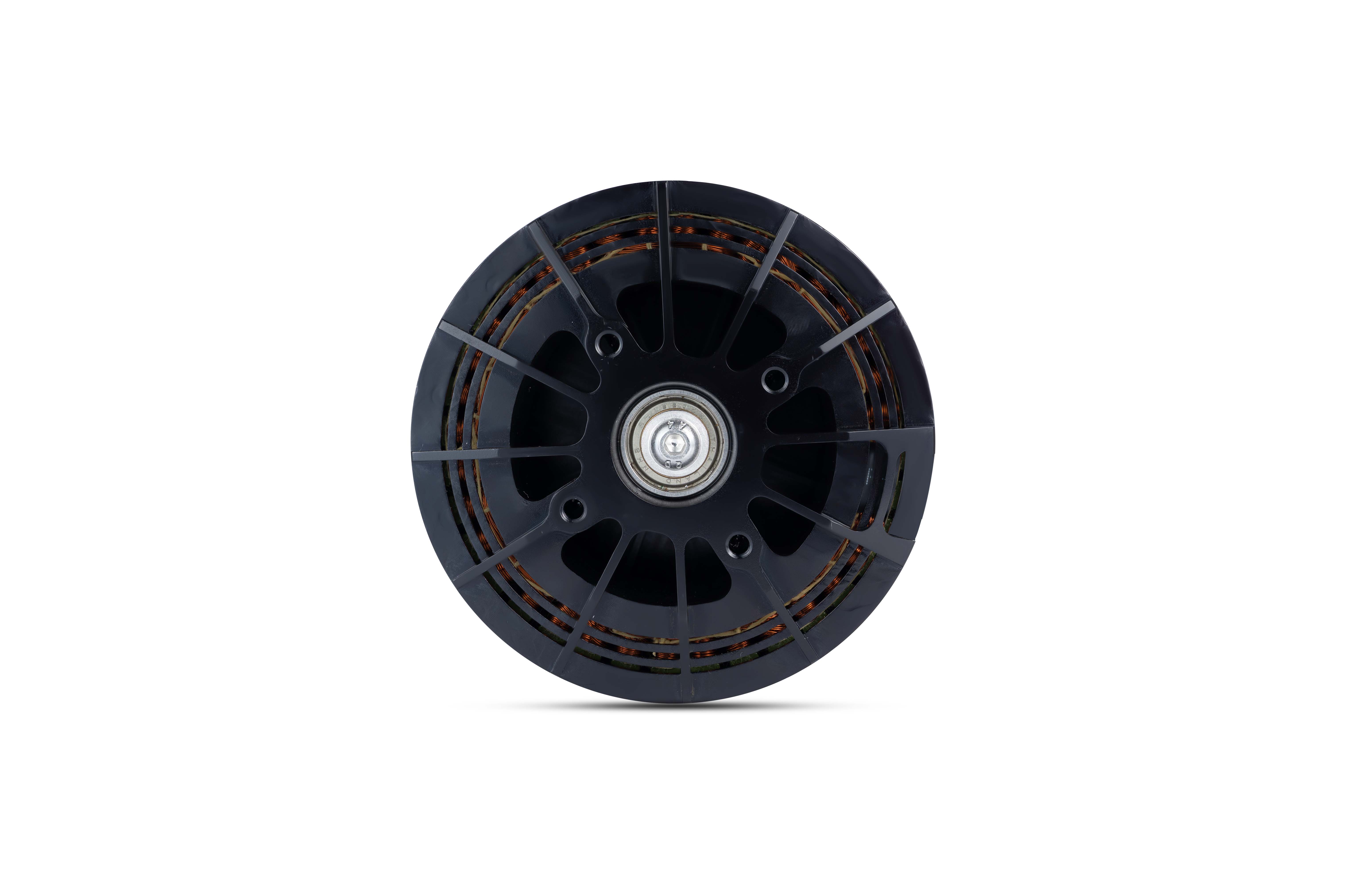

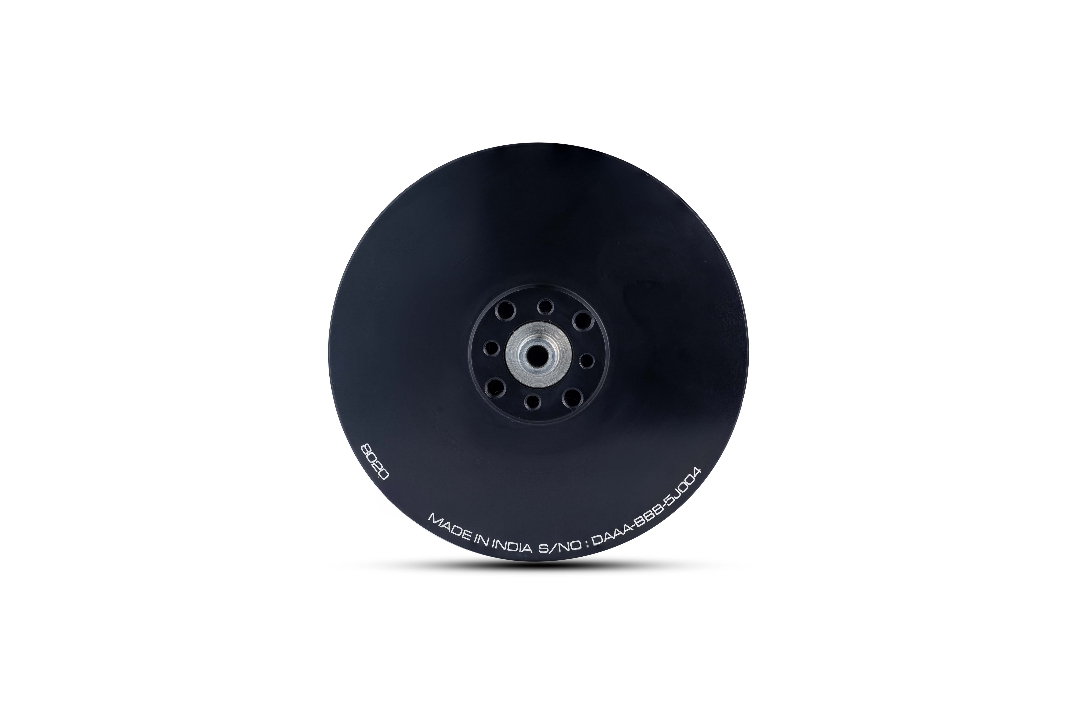

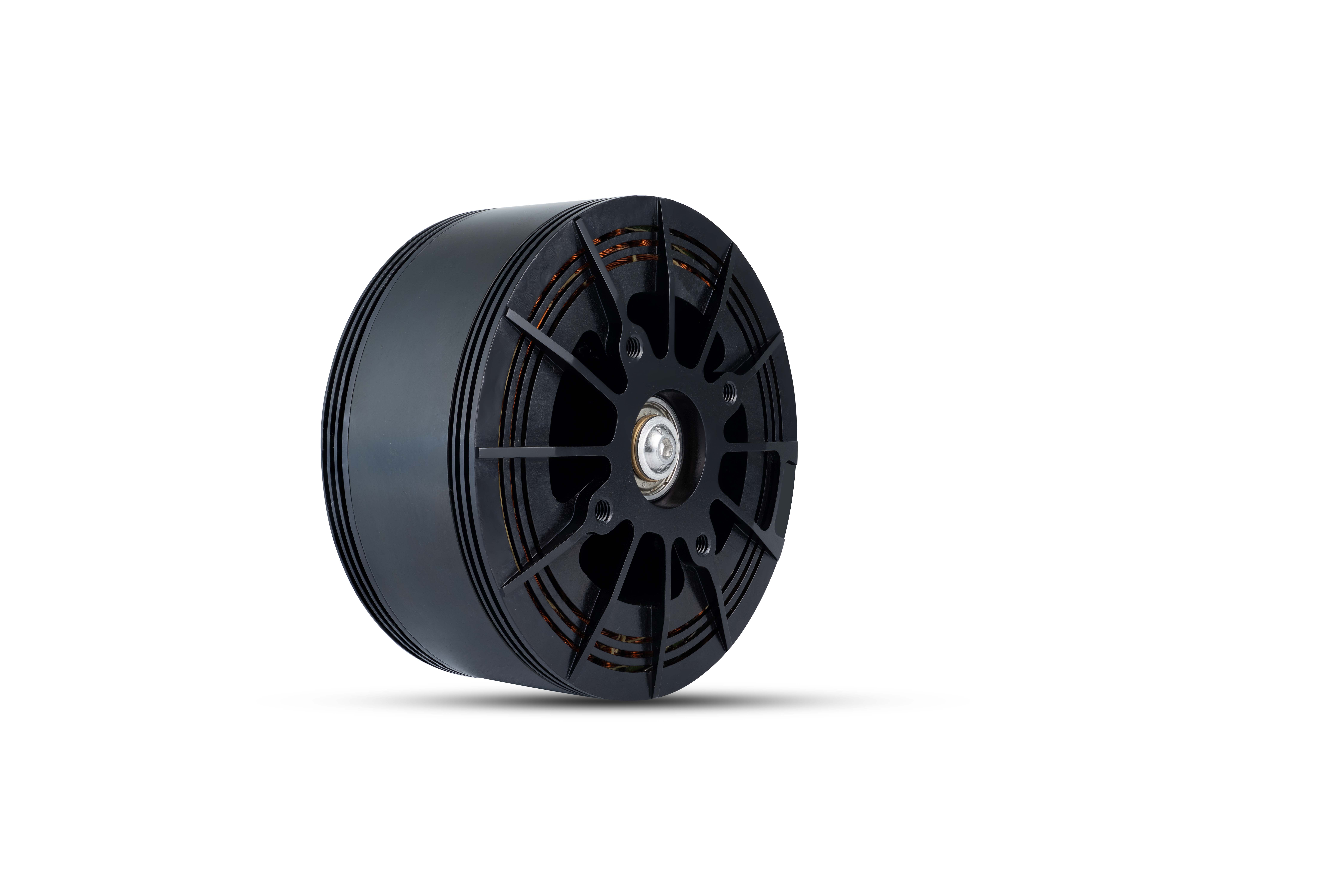

8020 PRO
Motor Diameter
ø 89.4 mm
Motor Length
48.7 mm
Motor Weight
750 g ± 5 g
Kv (Motor Velocity Constant) :
120 RPM/V
Kt (Motor Torque Constant) :
0.108 Nm/A @ 3200 RPM
Maximum Continuous Current :
54A (180s)
Maximum Continuous Power :
2954W (180s)
Power Density :
3.66 W/g (Rated), 5.03 W/g (Maximum)
Voltage Range :
44V - 50V ( 12S LiPo)
Io (XX@V) :
3A (48@V)
Inductance per phase (Winding Inductance) :
0.038 ( ≃0.03) mH
Stator Poles :
36S
Magnetic Poles :
42P
Bearings :
Dual 6001/2RSL Sealed
Stick Out Shaft Diameter :
ø 10.8 mm
Motor Diameter :
ø 89.4 mm
Motor Length :
48.7 mm
Motor Weight :
750 g ± 5 g
Mount Pattern @ 90 deg :
8 X M4 @ PCD ø 40 mm , 51 mm, 4 X M5 @ PCD ø 51 mm with ↧ 6.5 mm
Compatible Propeller Size :
28 " inch to 30 " inch
Propeller Mount Pattern :
6 X M3 @ PCD ø 71.5 mm ↧ 7 mm, 4 X M4 @ PCD ø 24 mm ↧ 7 mm
Specifications And Performace Data
